Osram electric transformer halogen lamp htm 150/220-240

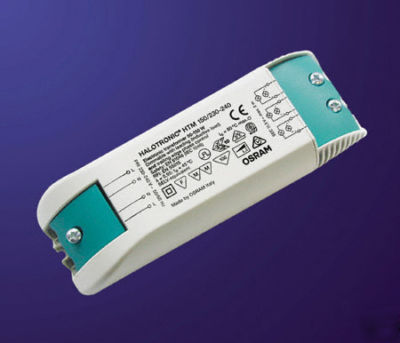

OSRAM Electric Transformer halogen lamp HTM 150/220-240
Output voltage 11.4 V (150 W) | 11.5 V (50 W)
Max. no. of ECGs on circuit breaker 10A 16
Max. no. of ECGs on circuit breaker 16A 26
Mounting hole spacing, length 146 mm
Wire preparation length, output side cable sheath 12 mm, wire 8 mm
Wire preparation length, input side cable sheath 12 mm, wire 8 mm
Max. cable length - system in meters 2 m
Max. casing temp. in case of fault 110 C
Max. operating temp. at the Tc point 80 C
Ambient temperature range 0 ... +45 C
Storage temperature -40 ... 85 C
Relative humidity 5 ... 85 % 2)
Our Ref. G500/HD184/PM150/OP13
