Lg/goldstar os-9020G 20 mhz oscilloscope w/function gen

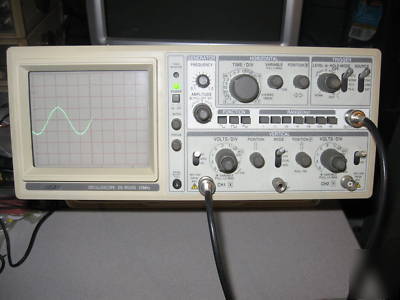

LG/Goldstar OS-9020G 20 MHZ Oscilloscope w/Function Generator
This scope from LG Precision is jam packed with features seldom found in 20 MHz scopes. The large 6" high luminance CRT features an internal graticule. It has alternate triggering function and sweep magnification. A TV sync separator circuit allows stable TV signal observation. A sync separator allows stable triggering of video signals. Dual channel X-Y operation is displayed in the CHOP mode with CH1 as the X-axis and CH2 as the Y-axis. Also includes a built in Function Generator!!
* Deflection factor of 1mV/div.
* Algebraic sum of CH1 and CH2
* Low drift with compensation circuit
* Maximum sweep rate of 20ns/div.
* Stable observation of video signals with internal TV sync. separator
* Jitterless trigger circuitry
* Variable trigger hold-off
* Precision X-Y phase difference measurement to 50kHz
* Built-in 1MHz function generator with BNC output of 50W and TTL
* Triangle, Sine, Square waveforms with 50W output
The unit was recently retired from a Techincal Training College and is in good physical and working condition. Power cord included. No probes or BNC cables included.
