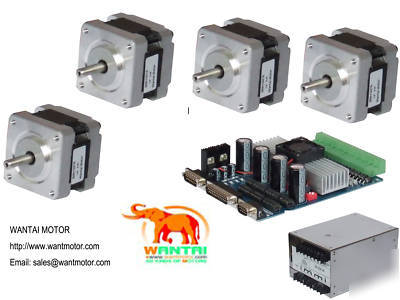

4 pcs nema 17 stepper motor + 4 axis driver cnc router
Please look at the website at below.
NEW* 4 Axis TB6560 Stepper Motor Driver Controller
Aerospace TB4-axis drive board HY-TB4DV-M Instructions
Thank you for choosing our products better and faster operational numerical control for you, please read this manual
1 The maximum 3.5A drive current to a maximum 86 stepper motor drives, more powerful
2 1-16 sub-setting, higher accuracy, smoother operation
3 Overload over-current over-temperature protection, full protection of your computer and peripheral equipment
4 4 files current settings can be set according to the user the actual current requirement
5 Full closed-type optical isolation to protect the user's computer and equipment
6 Professional design, two-stage signal processing, super anti-jamming
7: Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region
8: Four input control, you can set limit, emergency stop, which is divided into pairs of knives.
Double-pole constant flow PWM actuation output.
Actuates the electrical machinery
42,57,86 step-by-step the electrical machinery, 2 - 4 (4 6 8 step-by-step electrical machinery)
Please note the following before the test items
1 To determine the size of the supply voltage and current
2 Determine the stepper motor power and current (model)
3 Determine the stepper motor wiring
4 Power Please take 12 ~ 36V 8A (stepper motor in accordance with the work of current matching) The above switching power supply, I received a map indicating the power input interface
12V power output for a 12V cooling fan to pick up where
The definition of 1-PIN 25 of Parallel Interface is described as follows
The definition of 1-PIN15 of Manual Interface is described as follow Click the image to upper right for the P1 left P15
90 132VAC/180-264VAC 47 63Hz;255 370VDC
105-145% TYPE OUTPUT CUTOUT AC Restart
10 500Hz,2G 10min,/11cycle,60min,each axes
I/P-O/P:1.5KvACI/P-FG:1.5KvACI/P-FG:0.5KvAC
I/P-O/P,I/P-FG,I/P-FG:500VDC/100M
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.Line regulation:min&max voltage of the rated load.
5.Load regulation:load from 0 to 100%
Our products are mainly used in robotization, Spinning Automatization, Printing, Packing, Medica Machine, Make-up Equipment, Communication, Household Appliance, Water Pump, Milling Machine, Engraver Machine, CNC Routers.. etc automatic equipment of various trades.
Please join us, let s create the glorious future together!
You can add my MSN: jolie1985love@live.cn or Skpye: shenkeyun2
Wantai Electrical Appliance Co., Ltd
