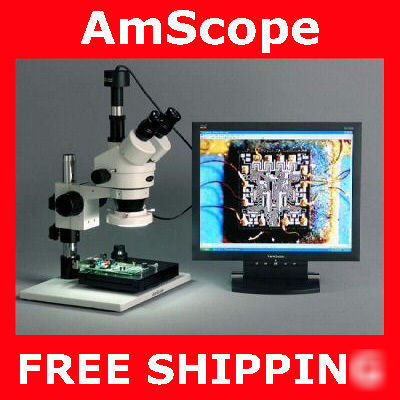

3.5X-90X inspection zoom microscope w/ 1.3M usb camera
3.5X-90X INSPECTION ZOOM MICROSCOPE W/ 1.3M USB CAMERA
Brand Name: AmScope Model No: SM-1TZ-FRL-GT-M Retail Value: $3,800 This microscope is manufactured under the strict guidelines
* A great SUPER widefield stereo microscope with color USB digital camera and gliding stage
* 1.3 Mega (1280x1024) pixel high resolution color USB digital camera included
* User-friendly software compatible with Windows 2000/XP/Vista
* Capturing microscope still images or displaying real-time video on your PC screen
* Displaying full-screen live video images
* Saving microscope images as BMP, TIFF, JPG, PICT, PTL or other files
* Editing, saving and emailing microscope images
* Conducting measurement across microscope images
* Measuring lengths, angles, areas and etc
* Built-in reduction lens giving the same field of view images on your PC screen as those seen through eyepieces
* Fast USB2.0 connection and easy installation and operation
* Life-time free software upgrades
* 3.5X-90X extremely large zoom magnification power
* 26:1 extremely large zoom range
* 8" (200mm) extremely large working distance
* 23mm upright tube for photo or video capacity
* 30mm SUPER widefield eyepieces, 10X (see the difference in the above picture), included
* Super large metal pillar stand finished with stain resistant enamel
* Accurate alignment ensuring a fatigue-free long time viewing
* Fluorescent ring light included
* X-Y gliding stage included
* Eyepiece: 30mm super wide field high-eyepoint WF10X/20
* Auxiliary Objective: 0.5X & 2.0X
* Interpupillary Distance: 2-3/16" - 2-15/16"(55 - 75mm)
* Working Distance: 8" (200mm)
* Stand: 12.5"x10"x0.75" (320x260x20mm) solid cast steel base
* Illumination: 8W fluorescent ring light
* Accessories: eye-guards and clips
* Trinocular Stereo Zoom Head
* One Pair of Super Widefield High-Eyepoint Eyepieces, WF10X/20
* One Fluorescent Ring Light
* One Super Large Pillar Stand with Focusing Rack
WF10X Eyepiece with Reticle for Measurement
15X Super Widefield Eyepieces for Exten-ding Magnification Power Up to 135X
Eyepieces for Exten-ding Magnification
1.0X Barlow Lens for Lens Protection
1.5X Barlow Lens for Increasing Magnifi-cation Power by 1.5 Times
150W Fiber Optical Dual Gooseneck Illuminator
150W Fiber Optical Ring Illuminator
More Options of Microscope Digital Cameras
CCD Video Cameras For TV Display
X-Y Gliding Table (Stage) for Easy Sample Control
