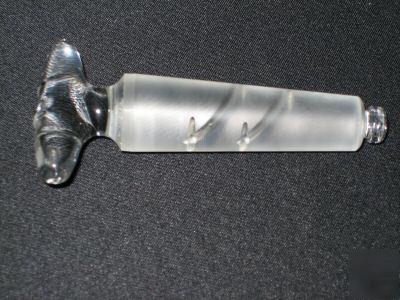

Stopcock plug, glass, 15/52 double oblique bore, 180°
Double Oblique Bore, ~2mm Bore
Brand unknown, probably used, but in superior condition - no chips, cracks, or stains. The bore diameter is ~2mm. With stopcock plugs there are often body size variations within a given bore diameter, so be sure to check dimensions below to see if the other attributes are compatible with your glassware.
This plug is used with 180 , double-oblique stopcocks and other 3-way systems. These types of plugs are very expensive to replace.
The ridge (retaing slot) where the retaining clip/ring would be placed has a diamater of 6.3-6.4mm. The cylindrical glass tab next to this has a diameter of ~8.1mm, and a length of ~3.5mm.
On the side of the taper where the bores are closer to the top, the approximate centers of the bores are 15mm & 26mm from the top of the plug. On the side where the bores are closer to the bottom, the holes are 26mm & 36.5mm from the top of the plug (or, with this last measurement, about 15mm from the bottom of the plug).
Diameter near the middle of taper
