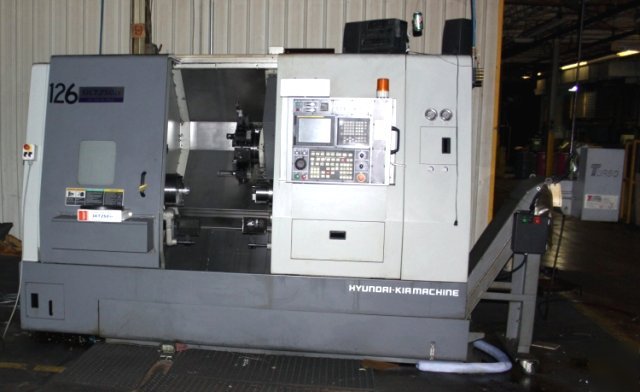

Hyundai skt-250MSY cnc lathe, fanuc 18IT
Hyundai SKT-250MSY CNC LATHE, Fanuc 18iT
CNC TURNING CENTER WITH "Y" AXIS, SUB-SPINDLE AND MILLING
TRAVEL AXIS: X 9.1", Y +-2.2", Z 26.6", ZB 27.6"
SWING OVER BED......................... 24.4"
SWING OVER CROSS SLIDE................. 19.3"
MAXIMUM TURNING DIAMETER............... 16.1"
MAXIMUM TURNING LENGTH................. 24.4"
MAIN SPINDLE BORE...................... 3.74"
MAIN SPINDLE BAR CAPACITY.............. 3"
MAIN SPINDLE SPEEDS.................... TO 3,500 RPM
MAIN SPINDLE MOTOR..................... 30 HP
SUB SPINDLE SPEED...................... TO 6,000 RPM
SUB SPINDLE BAR CAPACITY............... 2.09"
SUB SPINDLE MOTOR...................... 10 HP
MAIN AND SUB SPINDLE C-AXIS INDEXING... 0.001 DEGREES
MAX. MILLING TOOL SPEEDS............... TO 4,000 RPM
MILLING TOOL MOTOR..................... 7.4 HP
RAPID TRAVERSE(X/Z/Y/ZB AXIS).......... 787/945/394/787 IPM
TURRET STATIONS........................ 12 STATIONS
TURRET INDEXING TIME................... 0.33 SEC.
FLOOR SPACE............................ 126" X 79"
MACHINE WEIGHT......................... 14,500 LBS
* 10" CHUCK FOR MAIN SPINDLE & 6.5" CHUCK FOR SUB SPINDLE
* PARTS CATCHER FOR MAIN AND SUB SPINDLE
* "Y" AXIS, MILLING, SUB SPINDLE, C-AXIS FOR MAIN AND SUB SPINDLE
