20" w 40" l supertec stp-2040CII surface grinder, 3-axi
20" W 40" L Supertec STP-2040CII SURFACE GRINDER, 3-Axi
20" Width 40" Length Supertec STP-2040CII SURFACE GRINDER, 3-Axis Automatic, 10 HP Spindle, Mitsub
"NEW" SUPERTEC MODEL STP-2040CII
w/Mitsubishi PLC Control w/LCD Touch Screen

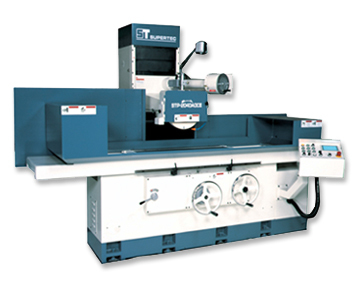

NOTE: PHOTO IS OF THIS OR A SIMILAR MODEL
- The precision cartridge spindle is equipped with 4 preloaded class 7
(p4) super precision angular contact ball bearings to ensure high
accuracy and superior grinding finish.
- Spindle, couplings, and 10HP spindle motor are precisely balanced for
low vibration and powerful output to achieve precision grinding
- Rigid table with box-type structure travels on a cushion of oil with
no metal-to-metal contact to provide excellent way longevity.
- Column guideways are Turcite-B coated and precisely hand scraped to
provide smooth movement for better accuracy and longer way life.
better downfeed repeatability.
- Crossfeed mechanism incorporates a precision ball screw and AC inverter
to provide a smooth accurate crossfeed, and allow criss-cross grinding
for a better grinding surface finish.
- The hydraulics, coolant, and lubrication systems are separated from
the machine to eliminate vibration and dissipate heat. A heat exchanger
is used on the hydraulic system to maintain the proper temperature of
- All moving surfaces and rotating parts are continuously lubricated by
an auto-lube system to ensure longer service life and maintain maximum
accuracy. An alarm light will illuminate if oil pressure drops below
- The Mitsubishi PLC control uses a menu-driven LCD touch screen that is
easy to learn and easy to set up. Simply fill in the blanks to set
total grinding amount, rough increment, fine increment, spark-out
passes, feeding direction, parking position, and wheelhead retract
distance. Press cycle start to complete an automatic grinding cycle.
Distance from table to spindle center: 24
Max. table load (include Chuck): 1870 lbs
Standard magnetic chuck size: 20 x 40
Auto increment feeds: 0.08 - 0.4
Auto Downfeed (CII): 0.000050"~0.01"
Wheel size: 14 x 2 x 5 (D x W x Bore)
Net weight (approx.): 10340 lbs
Gross weight (approx.): 11220 lbs
Packing Dimension: 119 x 90 x 98 (L x W x H)
- Electromagnetic chuck (20 x 40 )
- O.S. Walker Interloc-Type (20 x 40 )
