High pressure gas flow valves
Whitey Swagelok High Pressure gas flow metering panel

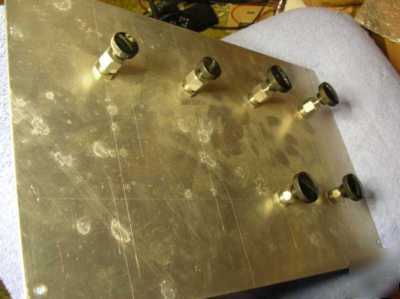

I got this panel in a lot of scientific process equipment. It is a 12x19x1/8" stainless plate panel, with four metering valves, and two needle control valves.
(2) SS-3LRS4 5K psi needle flow metering valves.
(2) SS-21RS4 3K psi needle flow metering valves.
(2) SS-1KS4 5K psi needle valve
These are mounted on the panel and plumbed with high pressure fittings and tube, and appears to have the 3K valves in parallel, and the 5K valves (one has the flow direction arrow opposite of the other) inserted in parallel with the 3K;s using the two 1KS4 valves.

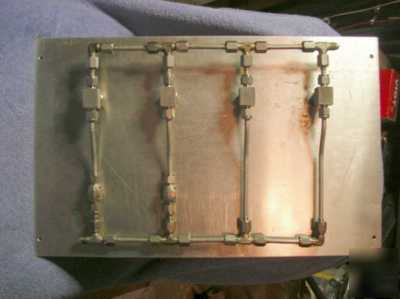

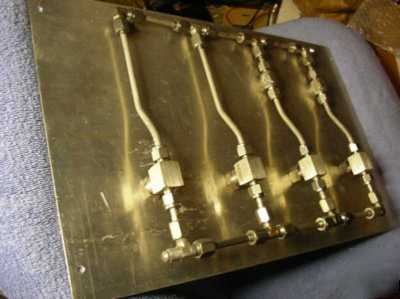

Hopefully, look at the third picture to see the plumbing.
