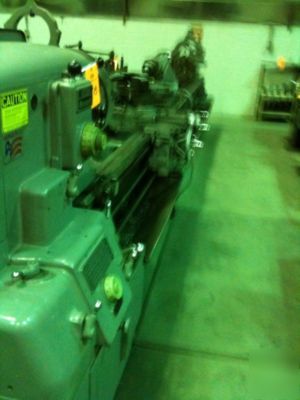

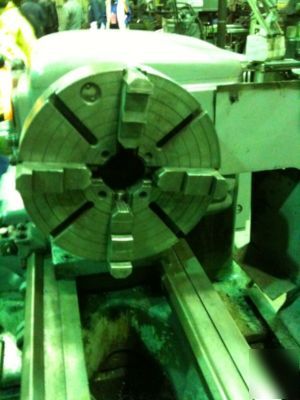

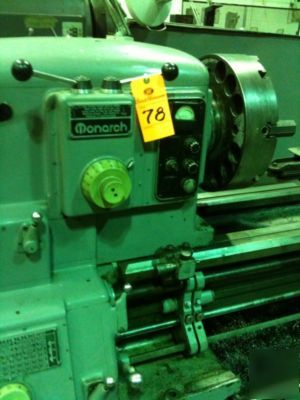

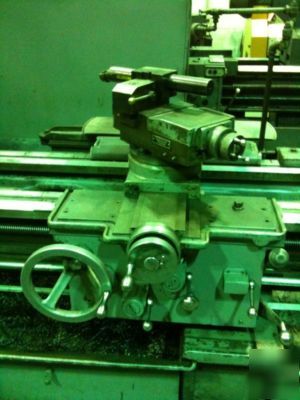

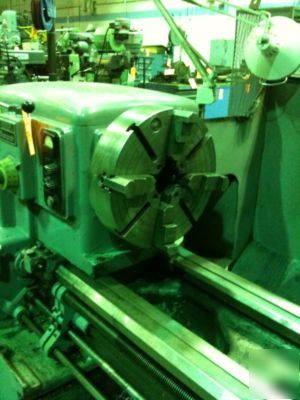

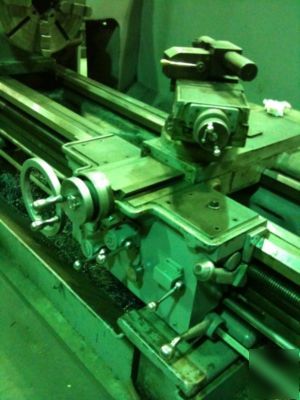

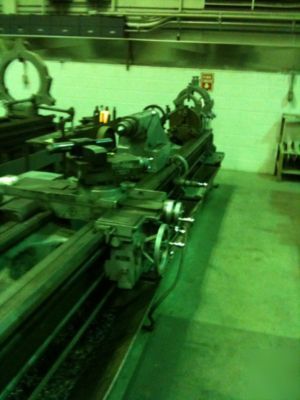

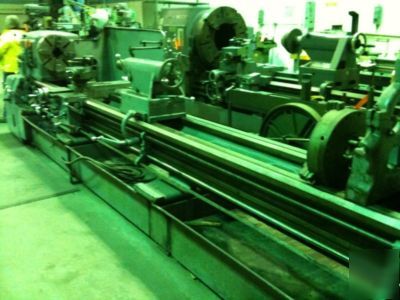

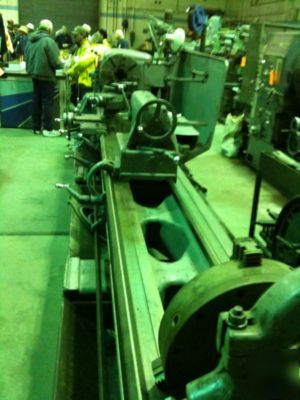

28" x 178" monarch engine lathe, mdl. 1610, s/n 50471R
ONE Preowned MONARCH Engine Lathe
MDL. 1610, S/N 50471R, MFG 1993
CAPACITY .. .. 28" X 178"
SWING OVER BED . 28"
SWING OVER CROSS SLIDE .. 19"
DISTANCE BETWEEN CENTERS ... 178"
SPINDLE SPEEDS (36). . 12 - 12,500 RPM
SPINDLE NOSE D1 - 6
HOLE THRU SPINDLE 2-1/8"

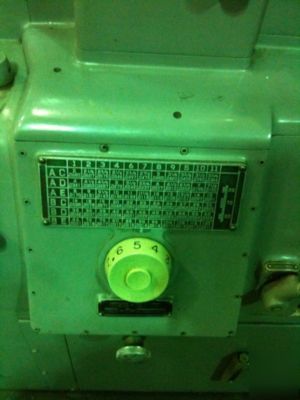

THREADS INCH (66) ... 2 - 120 TPI
FEEDS (66) 0.011" - 0.0683"
CROSS SLIDE TRAVEL .. 14"
TAILSTOCK QUILL TRAVEL .. 8-1/2"
TAILSTOCK QUILL TAPER . #5 MT
DIMENSIONS (L X D X H) 22' X 55" X 58"
WEIGHT .. 15,000 LBS
MOTOR 20 HP
3 - STEADY REST 6" - 10" - 10"
NOTE: THIS MACHINE WAS REBUILT BY THE MONARCH FACTORY IN 1993
PRICE: ON SITE, (S. EL MONTE, CA) .. ... . $49,500.00
