New * * fluke 789 processmeter 24V loop power FLUKE789
Features of the Fluke 789: 24 V Loop power supply, Very large dual display, Enhanced backlight with 2 brightness settings, 1200 Ohm drive capability on mA source, HART mode setting with loop power and a built-in 250 ohm resistor, 0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check, Externally accessible fuses for easy replacement, Infrared-port to process data in FlukeView Forms (V2.1) software; Precision 1000 V, 440 mA True-RMS digital Multimeter; 0.1% dc voltage accuracy; 0.05% dc current accuracy; Frequency measurement to 20 kHz Min/Max/Average/Hold/Relative modes; Diode Test and Continuity Beeper; Simultaneous mA and % of scale readout; 20 mA DC current source / loop calibrator / simulator; Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp; Externally accessible battery for easy battery changes.
The Fluke 787 was the first tool to combine a DMM and a loop calibrator to give process technicians double the power in one tool. Now it s even better, the range is extended with the new Fluke 789 the ultimate loop calibration multimeter. The Fluke 789 has a 24-Volt loop supply reducing the need for taking a separate power supply when doing offline transmitter testing. And with its built-in, selectable 250-Ohm Hart resistor, it also eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less

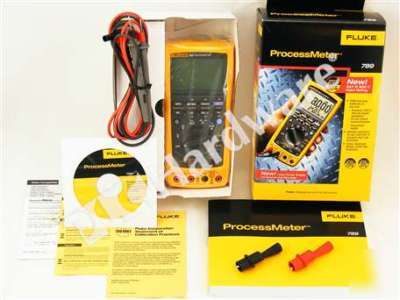

One New Fluke 789 ProcessMeter with accessories in excellent working and cosmetic condition in Original box
