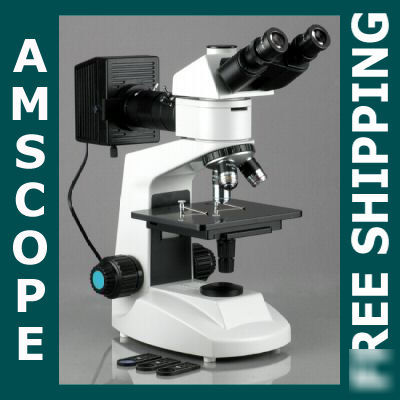

New trinocular metallurgical compound microscope
Brand Name: AmScope Model No: ME320T Retail Value: $2,500
SUPER HIGH QUALITY INSTRUMENT !
* A professional grade metallurgical metallographic microscope!
* EPI-illumination reflected light microscopy system
* Photo/video capability with 23mm universal/standard photo port
* 30 inclined 360 rotatable sliding trinocular head
* Six levels of magnification, 40X, 64X,100X, 160X, 400X & 640X
* Three DIN standard Plan objectives included
* Two sets of widefield eyepiece included
* Intensity-variable halogen EPI-illumination
* Two filter frames and one blue EPI-illumination filter included
* 7-0"x 5-3/4" (180x145mm) extremely large mechanical stage with stain resistant finish
* Low position stage traveling controls
* Coaxial coarse and fine focusing
* Focusing Range: 1-9/16" (40mm)
* Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
* Head: 30 inclined trinocular
* Camera/Video Trinocular Port: 23mm universal/standard photo tube
* Eyepieces: WF10X (18mm Field of View), WF16X (11mm)
* Objectives: Plan Achromatic 4X (0.1 NA), 10X (0.25 NA), 40X (Spring, 0.65 NA)
* Stage Dimensions: 7-0"x 5-3/4" (180x145mm)
* Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
* Vernier Division: 0.004" (0.1mm)
* Illumination: halogen lamp, 6V/20W
* Power Supply: 90V-240V wide band, CE certified
* One Trinocular Compensation-Free Compound Microscope Head
* One Microscope Body with Frame, Base and 90V-240V Wide Band EPI Illumination System
* Two Pairs of Widefield Eyepieces: WF10X & WF16X
* Three Plan Achromatic Metallurgical Objectives, 4X, 10X & 40X
* Two Filter Frames and One Blue Filter
scope. We provide immediate support for any issues regarding your microscope. We just a phone call away
