M200-K-QUAD, 850/1300 nm multimode and

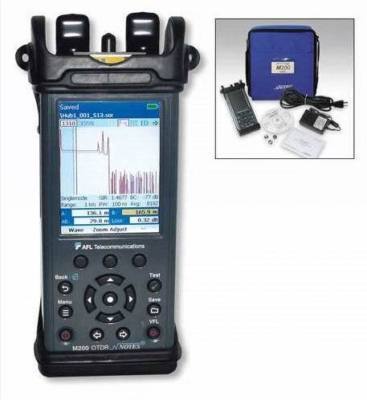

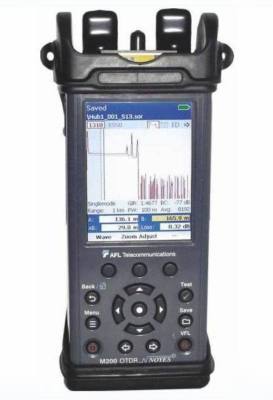

The Noyes M200 from AFL Telecommunications offers unmatched OTDR capabilities in a handheld package weighing less than 1 kg (2 lb). Multimode, Single-mode, and Quad wavelength models are offered. With short dead zone and intermediate range specifica tions, the M200 is ideal for Tier 2 testing of premises (building and campus) networks or certification and troubleshooting of FTTX PON networks. And its bright, transflective display makes it suitable for both indoor and outdoor operation.
The M200 is based on a new hardware/software platform that supports automatic and manual setup, precision event analysis, dual-wavelength testing, fiber identification using Noyes TR test receivers, rich file naming and folder setup, 6 hour battery life, internal and removable media data storage, and USB connectivity. Test ports are equipped with tool-free adapters, which can be changed in seconds. A custom-designed polycarbonate case and shock-absorbing boot make it our most rugged OTDR ever.
USB Host Port offers a new convenient way to transfer data from the M200 to a PC. By using a standard USB Flash Drive (not included) to transfer traces, the user no longer needs a USB Cable, ActiveSync or a Compact Flash reader. Using the Tools in the M200 File Manager, one or more folders or files can be copied to a USB Flash Drive for transfer to a PC. Thousands of files will fit on a 64 MB or larger USB Flash Drive.
22 dB (MM), 26 dB (SM) dynamic range
Tool-free, switchable adapters
Transflective (indoor/outdoor) touch-screen display
Tier 2 testing of premises networks
FTTX PON certification and troubleshooting
Class 1 FDA 21 CFR 1040.0 & 1040.11
10, 30, 100, 300 ns, 1, 3, 10 s
0.25 m (range < 4 km)Range/16000 (range > 8 km)
Group Index of Refraction (GIR)
(1 + 0.005% x distance + data point spacing)
Internal, non-volatile memory and removable Compact Flash Card
> 100 internal; thousands on Compact Flash or USB Flash Drive
USB Flash Drive Type 1.1, Compact Flash or Mini USB Cable with ActiveSync
Visual Fault Locator Specifications
Class II FDA 21 CFR 1040.10 & 1040.11; IEC 825-1:1993, EN60825-1:1994
23 x 11 x 7 cm (8.8 x 4.3 x 2.8 inches)
Removable LiIon or 110/220 VAC power adapter
