Phoenix contact flk-D50 sub/s mounted interface module

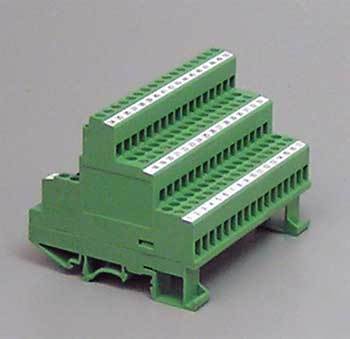

Phoenix Contact FLK-D50 SUB/S Mounted Interface Module
DIN Rail Mounted Interface Module with 50-Pin Male D-Sub
Varioface modules are universal interface elements that simplify system wiring between the peripherals and input-output levels
of automation devices. They are electrically connected, position by position, on the input and output sides. The D-Sub
connector modules offer a compact 3-level version with test connections.
* Varioface module, with screw connection and D-Subminiature male connector, for mounting on NS 35/7.5 or NS 32, 50-pos.
(separate test socket for each channel)
* Nominal voltage: UN 125 VAC
* Max. current carrying capacity per branch: 2.5 A
* Ambient temperature (operation): -25 C ... 50 C
* Ambient temperature (storage/transport): -25 C ... 70 C
* Test voltage: 800 V AC (50 Hz, 1 min.)
* Standards/regulations: IEC 60664; DIN EN 50178; IEC 62103
* Surge voltage category: II
