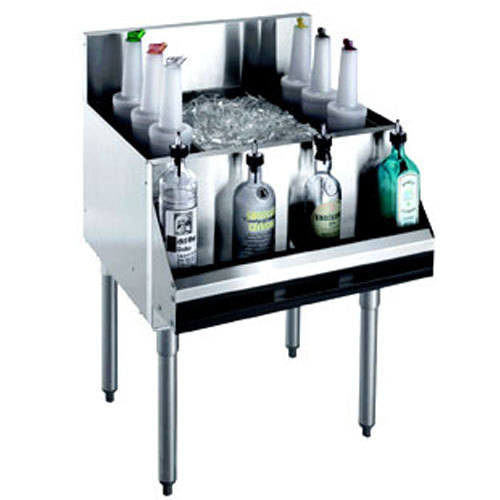

Krowne KR18-36-8 ice bin, 36" length x 19" front to bac
Ice Bin, 36" Length x 19" Front to Back, 12" Deep Ice Bin, 80 Lb., Bottle Racks, 8 Circuit Cold Plate with Soda Line Access, Royal 18 Series
Royal 18 Series, Ice Bin, 36"x19" OA., 7" backsplash, 12" deep bin, 8-circuit cold plate w/soda line access, 1" drain, 115-lb capacity, bottle racks, s/s top, front, sides and legs
* Cold Plate - Cast aluminum plate with eight circuits. Plate is sealed into bottom. Each circuit is 5/16" O.D. stainless steel tubing. Two full with remainder to be half circuits. Bump and swedge fittings on ends.
* Tubing Access: 3/4" x 3.5" cutout in left side of backsplash on cold
* plate unit (1800 series).
* Legs: 1 5/8" tubular 16 gauge stainless steel with grey thermoplastic bullet foot.
* Interior: 20 gauge 304 series stainless steel, 12" or 15" deep.
* Front Apron: 20 gauge 304 series stainless steel clad over 20 gauge galvaneal.
* Backsplash: 20 gauge 304 series stainless steel.
* Back and Bottom: 20 gauge galvaneal
* Sides: 20 gauge 304 series stainless steel
* Insulation: Foam in place polyurethene
* Plumbing: 1/2" IPS drain connection with cold plate. Note: Cold Plate Unit supplied with 1/2" x4" threaded
* Height: 30" (without backsplash)
