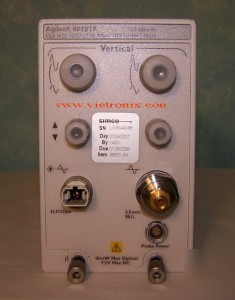

Hp agilent 86101A 20GHZ electrical 2.85 optical module
hp Agilent 86101A 20Ghz Electrical 2.85 Optical Module
* CD-ROM 86100 Series Service and start up manual
* The Agilent 86101A provides the an excellent measurement system for testing signals operating at 1063 or 1250 Mb/s in addition to other high-speed telecommunications signals. The calibrated, integrated optical receiver with over 2.8 GHz bandwidth allows for simple, precise measurements of single-mode or multimode optical signals. A typical power meter is built-in. For compliance testing, a hardware filter for both are 1063 Mb/s or 1250 Mb/s testing can automatically be switched in to create a calibrated Fiber Channel or Gigabit Ethernet reference receiver. The switch able filter minimizes setup time while maximizing measurement repeatability.
* Integrated/calibrated optical channel with sensitivity to below -17dBm.
* 750 to 860 nm wavelength range.
* Automatic/switch able filters for compliance testing at both 1063 and 1250 Mb/s or 155/622 Mb/s.
* 20/12.4 GHz bandwidth electrical channel.
* 2.5/12.5 GHz trigger channel (set by mainframe).
