> FPP06R001 synchronous rectifier module 70V 60A 3.5MΩ X2

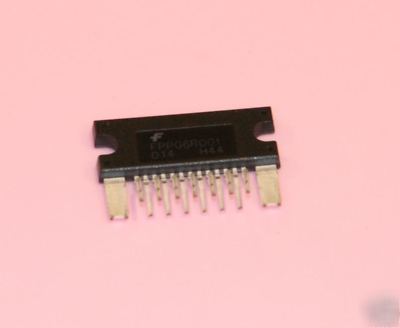

FPP06R001 synchronous rectifier module 70V 60A 3.5MΩ X2
70V 60A 3.5m Synchronous Rectifier Module
Contains 2 Synchronous Rectifier MOSFETS and driver circuitry
The FPP06R001 is synchronous rectifier module which achieves
very high rectification efficiency. It includes built-in
very low RDS(ON) MOSFETs. In addition, it includes the superior
gate driver that supports higher driving capability to be more
suitable for these low RDS(ON) MOSFETs. This Power-SPM
device can be used in the secondary side of the PWM transformer
of forward/bridge converter to provide high current rectification
at output voltages ranging from 12 Volts down to 5 Volts.
With this product, it is possible to design the secondary side of
power supply systems with reduced parasitic elements resulting
in minimized voltage spike and EMI noise.
