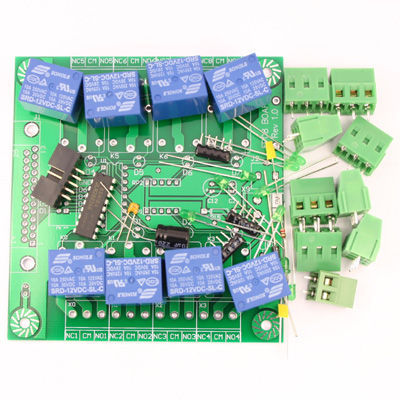

FP08 8 relay board kit for pic, avr, 8051, vb, labview
for PIC, AVR, 8051, ARM Project
or PC Parallel Printer Port Relay Control
8 Channels TTL Inputs to 8 Relay Outputs
Come with Sample Source Code and Test Program
Please Visit Our Store at: FCElectronics.mybisi.com
Sample Assembled Board for PIC, AVR or 8051 Project
Top of The PCB (Print Circuit Board)
Bottom of The PCB (Print Circuit Board)
FP08I/O 8 Relay Board DB25 Female Connector (Option)
Window Based Test Program v2.00 (Click Download)
Input/Output Addaress Label Edit
* Double side PCB trace can carry 10A current between Relays and Terminals
* 8 x Relay outputs, contacts rated 10A@125VAC, 7A@240VAC/28VDC
* Indication LED s for output and input status
* Screw Terminal Blocks for Relay outputs, input channels and 12V Power Input
* DB25 female connector for connect to the computer parallel printer port.
* 2 x 5 Ribbon Cable Header for connect to PIC, AVR, Intel 8051 device
* Power input 12VDC / 350mA.
* Dimensions: 3.75 x 4.00inches (95 x 100mm)
* Windows based program to test the relay board for parallel port assembled board.
* VB 2005 test program sample source code
* LabVIEW program to test and timing control the relay board. (Option $10. and send by email)
FP08I/O Relay Board Print Circuit Board
SRD-12VDC-SL-C, SPDT 12VDC, 10A@250V
Board test program FP48Ctrl v2.00 (Click Download)
Board test program FP48Ctrl v1.00 sample source code. (Send by email)
D-SUB 25-pin Female Connector (J1)
* Test Program FP48Ctrl v2.00 for Parallel Port Assembled Board
* Schematic and Layout Drawing
* ULN2803A Darlington Transistor Array
* Inpout32.dll for Windows 98/2000/NT/XP
* Visual Basic 2005 Express Edition Free Download
* .NET Framework Version 2.0
