Ex university student microscope - kyowa unilux 11

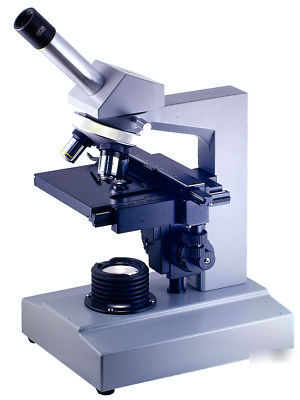

Ex University Student Microscope Kyowa Unilux
This is a beautiful heavy duty microscope in good condition for its age and usage. The microscope has under gone regular servicing from new. This would be an ideal microscope for the Biology/Medical student or serious amateur microscopist.
The microscope was made by Kyowa Optical Japan a manufacturer with reputation for quality both mechanically and optically. The stand has coaxial course and fine focus controls with tension control to the left and a stage height preset. Viewing is by a monocular view head with a wide field WF10x eyepiece the monocular can be fully rotated for discussion or locked. It is fitted with a quadruple ball bearing objective changer with original Kyowa A Series SemiPlan objectives: A10x 0.25na, A40x 0.65na and A100x Oil Immersion. It has a built-in pendant control mechanical stage to allow precise movement of the specimen under the high power objectives. Beneath the stage is a rack and pinion focused Abbe condenser with iris diaphragm and a 32mm filter holder. Illuminator is a variable QI 6v 20w with brightness control and a separate on/of switch. The body has some marks through usage but in all other regards it is a fine instrument.
Magnifications generated: 100x, 400x and 1000x - but remember magnification can easily be produced it s the resolution that matters and this microscope gives excellent resolution.
