Dsp cnc motion control system controller handheld box

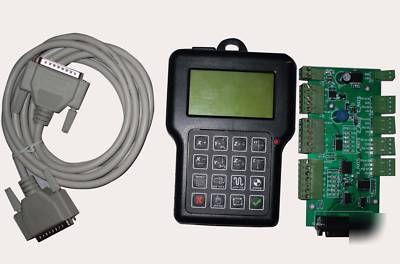

DSP CNC Motion control system Controller Handheld box
Perfect combination of high-speed and high-precision motion control is realized in the handheld CNC controller our company developed due to the special hardware structure and novel motion control algorithm it adopts. Traditional complicated NC operation become easy and simple because of its friendly HMI. USB interface make the data transformation very convenient. This series product has been widely used in machine caving, mold making, laser or plasma cutting fields. This user manual describes the characteristics and using methods of the CNC controller in detail. It is strongly recommended to read this manual carefully before using the controller.
The common characteristics and cautions given below must be followed strictly!
1. Totally independent from PC platform.
2. Directly read files from U Disk by USB host interface or get data from connected PC by USB slave interface.
3. Embedded mass storage memory allows many files to be saved in it.
4. The G-file pre-checking function can find file errors in time to avoid processing over scope.
5. Perfect self-checking function, including I/O, parameters, output pulses, zero coordination signals etc, makes remote maintaining possible.
6. Advanced functions, for example, multi-processing and area-processing, make the process operations more flexible and convenient.
7. Intelligent forecasting algorithm guarantees the processing precision and speed. It also makes the process more smooth, and reduces mechanical vibration.
8. Support linear interpolation, circular interpolation and spline interpolation.
9. Friendly HMI, high contrast LCD, Support Chinese and English language, menu and graphic display style. Operation is simple.
11. Reliable power down protection and data restore function.
128M memorizer inside, it supports file
with any size because of adopting mobile
Useful help information and guide
Chinese (optional or customize)
Friendly Buttons and Menu Drive
linear acceleration/deceleration
longitudinal and Tapered thread
Measurement and loading of the tool
dimensions in the offset table
Processing Data Inspect Function
Processing Position Adjusting Function
Stop Point Reprocessing Function
Data protection when power off
3. Quality is our life line to live in this market. So we will be always responsible for it..
4. If it is convenient for you. Please kindly leave your Tel number in order to make sure the items will get in your hands. Thanks for your cooperation.
