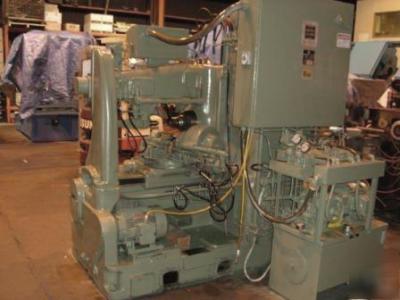

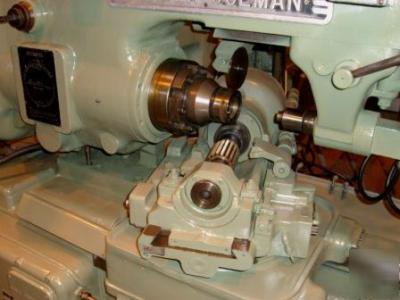

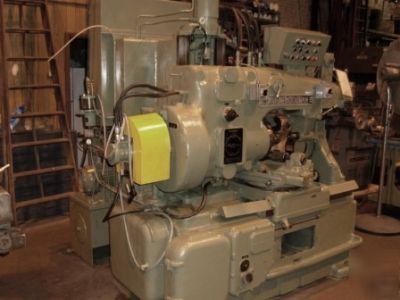

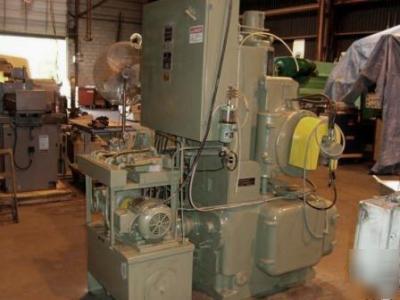

Barber colman 14-15 hydraulic gear hobbing machine
NO. 14-15 HYDRAULIC GEAR HOBBING
MACHINE WITH AUTOMATIC HOBSHIFTING
MAX. PITCH (FOR ONE CUT IN STEEL) 3.5 D.P.
DISTANCE, WORK SPINDLE FACE TO TAILSTOCK FACE: 28.5"
DIST, WORK SPINDLE FACE TO C/L OF HOB SPINDLE: 18.5" MAX 3.5" MIN.
DIST, C/L OF WORK SPINDLE TO C/L OF HOB SPINDLE 9.75" MAX 2" MIN.
DISTANCE, C/L OF WORK SPINDLE TO UNDERSIDE OF OVERARM 7.25"
DIAMETER OF HOLE THRU WORK SPINDLE: 4-1/8"
MAX. HOB SPINDLE AXIAL ADJUSTMENT: 3"
MAXIMUM HOB SWIVEL ANGLE SETTING: 50 DEG. L OR R
HOB SPINDLE SPEEDS (11) 64.5 TO 362 RPM
(WHEN EQUIPPED WITH SUITABLE GEARS)
FLOOR SPACE, APPROX. 92" L X 76" W X 84" HIGH
AUTOMATIC HOBSHIFTING - DOUBLE THREAD INDEX WORM - DIFFERENTIAL - HARDENED V-WAYS

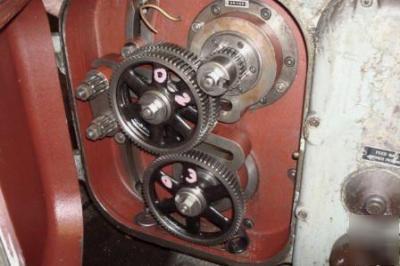

ONE SET OF CHANGE GEARS MOUNTED ON MACHINE SUITABLE FOR ONE PART
COOLANT DRIVE 1HP 220/440 MOTOR
HYDRAULIC UNIT DRIVEN BY 5 HP 3-60-220/380 MOTOR

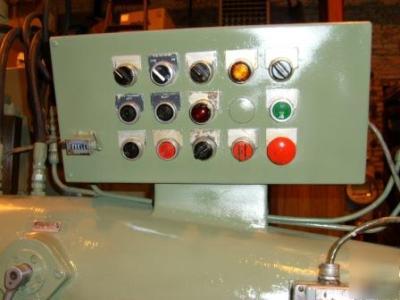

MAIN DRIVE 10 HP 3-60-220/380 MOTOR AND ELECTRICAL CONTROLS
And must be added in addition to purchase price and freight charge.
Negotiated Also visit our website at
Need faster answers Feel Free to call us direct
(***)-338-7139 ask for Erik J Myers
NOTE: Specifications can be approximate, and are not binding in any way.
We endeavor to make information as complete and accurate as possible.
If you notice a discrepancy, please contact us direct at (***)-290-0167.
