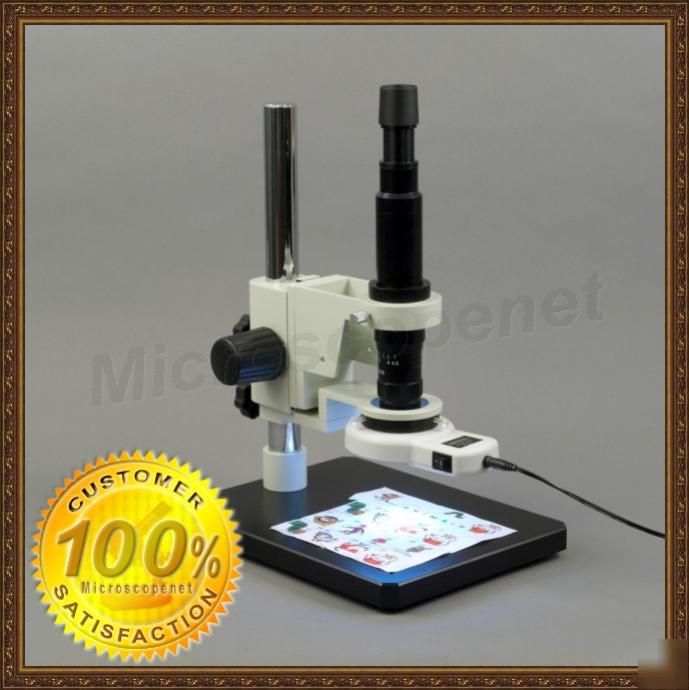

7X-90X industrial inspection zoom microscope 54LED lite
Industrial Inspection Monocular Microscope
* Height adjustable holder ready for attaching ring light
* 54 LED cold ring light with 48 mm thread adapter included
* Ready to connect to CCD digital camera
* Zoom lenses 7x~90x, crystal clear at any point
* Long working distance allow enough lighting options
* Eyepieces: wide field WF10X/18 & WF20X
* Total magnification:7x~90x
* Objective zoom ratio: 1:6.5 (0.7x~4.5x)
* Working distance: 3-1/2" (90mm)
* Ring light holder diameter: 56mm (smallest part of the dovetail shaped ring)
* Rack & pinion focusing adjustment stroke: 54mm
* Pillar height: 13-3/4" (35cm)
* Easy to attach 35mm~35.5mm add-on 0.3x & 0.5x auxiliary objective lens for enlarge field of view and increase working distance
* Illumination: 54 LED light, adjustable intensity, 100v-240v 50/60Hz worldwide power range
* Dimensions: 8-5/8" x 11-1/8" x 15-3/8" (22cm x 28.5cm x39cm)
* Net weight: 14 lb 13.5oz (6.7kg)
* Monocular stereo zoom microscope (0.7x~4.5x)
* Metal stand with ring light holder
* 54 LED ring light with power adapter
* C-mount adapter for industrial standard CCD cameras
* 23.2mm adapter for standard microscope eyepieces
* 0.3x auxiliary objective lens - 35mm~35.5mm
* 0.5x auxiliary objective lens - 35mm~35.5mm
Click on the button above to view the compatible parts for this product XM517L54P
