12" Width 24" Length Acer AGS-1224AHD SURFACE GRINDER, 3 Axis Automatic

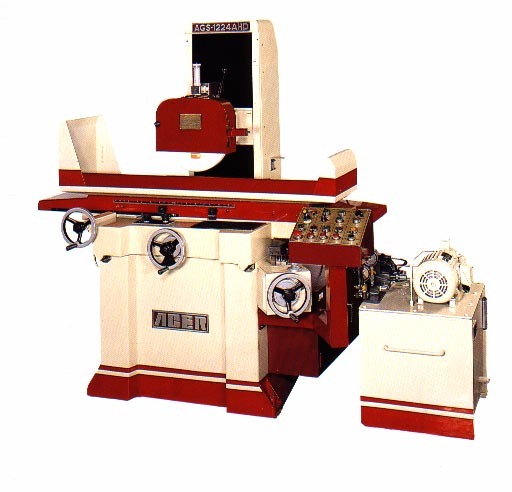

ACER HIGH PRECISION SURFACE GRINDER
MODEL: AGS-1224AHD - 3 Axis Automatic
* Hydraulic Table & Electronic Crossfeed
* Auto Lubricator, Rapid Elevation
Longitudinal Travel................... 24-1/2"
Cross Feed Travel..................... 14"
Spindle Center to Table............... 23-1/2"
Table Size............................ 12" x 24"
Wheel Speed........................... 1,750 RPM
Grinding Wheel........................ 14" x 1-1/4" x 5"
Vertical Graduation................... 0.0005"
Vertical Revolution................... 0.1"
Spindle Motor......................... 5 HP (V3)
T-Slot................................ 1" x 9/16"
Table Speed........................... 16 - 80 ft./min.
Net Weight............................ 4,180 lbs.
Auto. Increment Downfeed: Variable 10 Step (0.0001" - 0.001")
OPTIONAL ACCESSORIES (CALL FOR PRICES):
* "Walker" 12" x 24" Electro Fine Pole Chuck w/ Control
* Coolant System w/Magnetic Separator & Paper Filter
* "Newall" 2-Axis D.R.O.(16"x24" Travel, 0.0001" Resolution)
* "Sony" 2-Axis D.R.O. (16"x24" Travel, 0.00002" Resolution)
* Coolant System w/ Paper Filter
* Variable Chuck Control Master
