No. 4 bardons & oliver ram type turret lathe

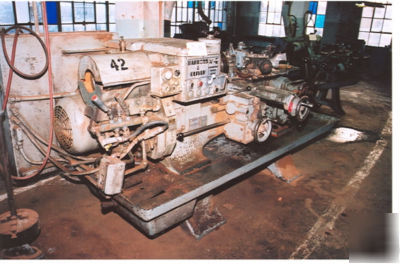

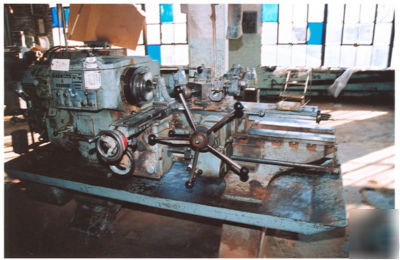

No. 4 BARDONS & OLIVER Ram type turret Lathe, S/N 18434, new 1957
Max. swing over carriage guides 16
Max. swing over cross slide 9
Max. distance end of spindle to face of turret 32
Cross slide carriage longitudinal travel 26
12 longitudinal feeds .0025-.050 IPR
12 hexagon turret feeds .0025-.050 IPR
Large quantity of collet pads, turret tooling, boring bars
10 H.P. 3/60/220-440 Volt Motor w/ controls
