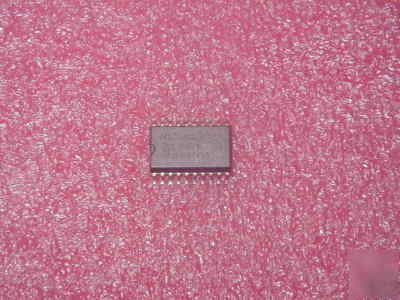

> Qty 10 * 74HC540 74HC540D octal inv buffer 3-state smd
Qty 10 * 74HC540 74HC540D octal inv buffer 3-state smd
The 74HC/HCT540 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT540 are octal inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs OE1 and OE2. A HIGH on OEn causes the outputs to assume a high impedance OFF-state. The 540 is identical to the 541 but has inverting outputs.
