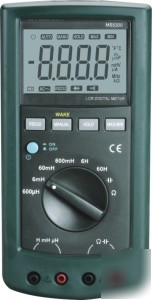

MASTECH MS5300 DIGITAL LCR METER with RS232 INTERFACE
The Mastech MS5300 is an auto/manual-ranging LCR meter with RS232 interface, which offers you the capability of connecting the meter with your PC for data logging, plotting and recording. The MS6300 provides a wide range of measurements including 6-range inductance up to 60H and 7-range capacitance up to 6 mF. This meter comes with a one-year manufacturer's warranty.
* Conforms to international safety standard IEC1010-1
* Rubber holster offers excellent protection
* Real-time data transfer to PC through a full isolated optical RS232C interface
* MAX /MIN. value measurement
* Auto power off (can be disabled)
* Resistance: 600/6k/60k/600k/6M 1.0%, 60M 1.5%
* Capacitance: 6nF 2.0%, 60n/600n/6 F 1.0%, 60 /600 /6mF 1.5%
* Inductance: 600 H 2.5%; 6m/60m/600mH 1.5%; 6H:<4H 2.8% >4H 5.0%; 60H:<40H 3.5% >40H Unspecified
* Power: 6 1.5V (AAA Type)
* Size: 200 mm 100 mm 40 mm
* Weight: Approx. 550g (including battery)
* Test leads with banana plugs
* Test leads with alligator clips
* Software CD (Windows vista & downward compatible)
