Huskie EP610H 15 ton hydraulic crimper +case burndy Y46

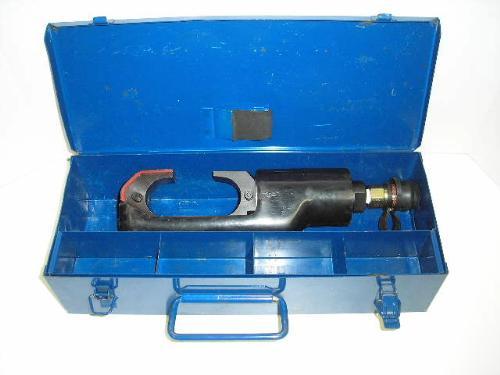

HUSKIE EP610H 15 TON HYDRAULIC CRIMPER +CASE Burndy Y46
with FITTED METAL CARRY / STORAGE CASE
The EP-610H is a remote C-head that requires an external 10,000 psi pumping source.
It accepts all Burndy "P" type dies used in the Burndy Y-46. (Same Tool-Different Brand)
When used with a PUADP die adapter it will accept all "U" type dies used with any 12 ton tool.
This tool is primarily used for cables above 750 MCM or in cases where additional tonnage is required
to compress larger lugs, terminals and sleeves on tension connections.
It is most always used on larger underground cables up to 1000 MCM.
These are great to for getting in a tighter space since the head is smaller that a pump type tool.
* Operating Pressure: 10000 psi
* Hydraulic Pressure Source: External
* 1.5" Jaw opening with P-Die Adapters
* Aluminum - #8AWG thru 1250MCM
* Copper - #8AWG thru 1500MCM
No Dies included but we have them available.
These are in like new condition.
If used at all, only a couple of times.
Cases do have scratches but tools ar immaculate.
They have been tested and ready to go.
