Agilent 81104A-81105A-81105A pulse generator 80MHZ

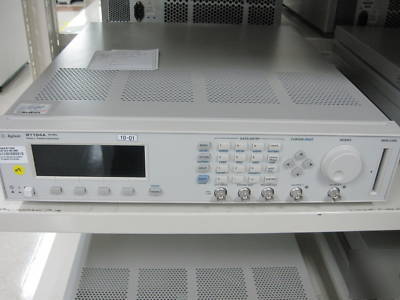

Agilent 81104A-81105A-81105A Pulse Generator Mainframe 80MHz
Agilent 81104A 80 MHz Pulse Pattern Generator with one or two Agilent 81105A output modules (single-/dual-channel) builds on the performance of the 81101A and is backward-compatible.
Single-/dual-channel pulse pattern generator
80 MHz, 10 V from 50 Ohm into 50 Ohm
Triggerable / PLL operation selectable
Pulse / burst / pattern modes selectable
Single- or dual-channel: Requires 1 or 2 output modules 81105A
Options: Two 81105A output modules installed
