Unico G380 luminator laboratory microscope

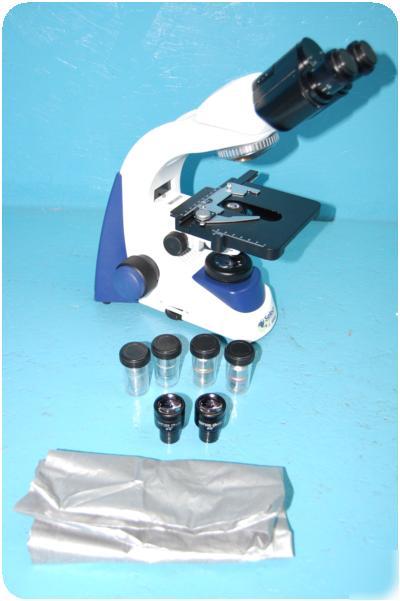

UNICO G380 Luminator Laboratory Microscope
* Objectives: 4X-10X-40XR-100XR Achromat
* Mechanical Stage, WF 10X Eyepieces
HEADS: Available with Monocular, Binocular, Dual View or
Trinocular heads. Binocular and Trinocular heads feature
Seidentopf optical design with 52 - 75 mm interpupilary distance
adjustment. All rotate 360 and lock in-place with a thumbscrew
COATED OPTICS: All optics feature the following coatings:
Anti-Glare, Color Correction, Anti-Fungal. Always clean with
optical cleaner designed for coated optics
CONDENSER: Features a focusable N.A. 1.25 Abbe condenser
with port for optional Simple Phase Contrast Annulus insertion.
Focusable for concentrated or diffuse lighting with rack and pinion
FOCUSING: Smooth, extra-large graduated coaxial coarse and
fine focus controls with tension adjustment to eliminate stage drift.
Adjustable to your personal preferences
EYEPIECES: Standard with 10X "High-Eyepoint" widefield
oculars designed to improve viewing while wearing glasses.
Standard widefield oculars are also available. FN = 18 mm,
optional 20 mm available. Reticules and Pointers available
STAGE: Built-in Graduated Mechanical Stage with low-position
coaxial X-Y controls. Ball bearing movement allows for smooth,
precise adjustments. Stage size: 142 mm x 132 mm. Range of XY
stage movement: 55 mm x 75 mm. Spring loaded slide holder
OBJECTIVES: All models feature DIN Standard 4X, 10X,
40XR and 100XR (Oil) objectives. 40 and 100X objectives are
"R", or Retractable. Nosepiece: 4 hole standard
Options are: Achromat, Semi-Plan, or Plan Achromats. Simple
Phase Contrast is available in 10X, 40X and 100X Semi-Plan
4X = NA 0.10 10X = NA 0.25 Focal Length: 160 mm
ILLUMINATION: Features a 6V / 20W Halogen light source for
consistent bright white light. Variable intensity rheostat wheel is
located on the left side of the base
ELECTRICAL: 110V- 60 Hz to 240V- 50 Hz, universal power
supply. The fuse rating is 250V 1.5A. Electrical parts UL/CSA
MAGNIFICATION: With 10X eyepieces, standard
magnification is 40X, 100X, 400X and 1, 000X (Oil)
STAND: Sturdy cast metal frame with unique polymer accent
panels, designed to provide stability while dissipating bulb heat
IRIS DIAPHRAGM: Features adjustable Iris with metal leaf
