Servolift eastern 502-4R-cw refrigerated server

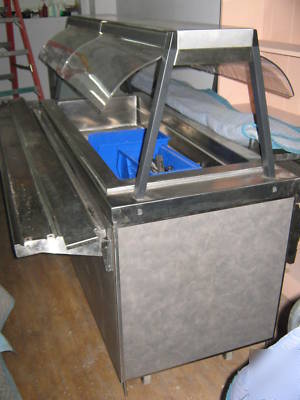

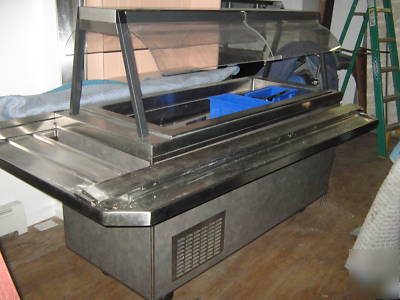

SERVOLIFT EASTERN 502-4R-CW REFRIGERATED SERVER
THIS IS A SINGLE UNIT WITH WRAP AROUND SOLID RIBBED TRAY SLIDES
BASIC UNIT SIZE : 28"W X 36"H X 68"
SIZE WITH TRAY RAILS AND BUFFET PROTECTOR GUARD : 53"W X 60"H X 81"
Eight foot electrical cord with NEMA 5-15P plug
On/Off switch and pilot light mounted on control panel of unit operator side
Fan-cooled condensing unit with an expansion valve
Refrigerant coils shall be of copper tubing attached to the bottom of the well
NEWLY PURCHASED 5 YEARS AGO. WE ALSO HAVE CONNECTING TABLES
* 14-gauge stainless steel top with 1-1/2" turndown on all sides
* Top secured by four recessed bolts for easy access
* 14-gauge stainless steel legs fastened to 18-gauge stainless steel bottom shelf
* 20-gauge stainless steel end and front panels are attached to legs
* 20-gauge stainless steel fully welded 5" deep well with drain
* Well is enclosed with insulation on sides, end and bottom
* 1" drain with shut off valve shall exit operator s left side as standard. Drain valve is 3/4" FPT.
* Open control side for additional storage capacity on Elite units
* Sliding doors standard on Mechanical (CM) unit only.
* Louvered panels for ventilation of condensing unit on CM units
* End louver panel removable to access compressor on CM units
* 5" diameter swivel plate casters, 2 with brakes
* Interlocking mechanism is provided to interlock with other Elite 500 units
Eight foot electrical cord with NEMA 5-15P plug
On/Off switch and pilot light mounted on control panel of unit's operator side
Fan-cooled condensing unit with an expansion valve
Refrigerant coils shall be of copper tubing attached to the
