Jds uniphase 2213-75SLRAM072 argon cylindrical laser

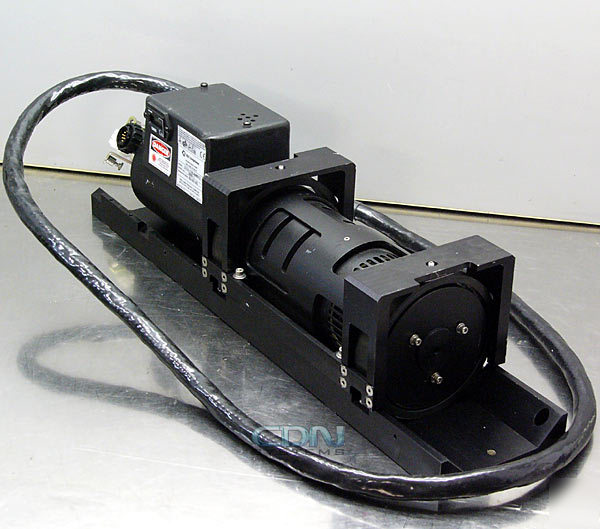

JDS Uniphase 2213-75SLRAM072 Argon Cylindrical Laser
JDSU 2213 Series Air-Cooled Argon-Ion Laser Head in Cylindrical Package Features:
* Features: Integral-mirror, metal-ceramic construction
* Optical output power: 75mW
* Wavelength: 488nm (blue/green)
* Minimum polarization ratio: >250:1
* Longitudinal mode spacing: 444MHz
* Noise: 0.1% 20Hz-2kHz pk-pk, 1% 20Hz-20kHz pk-pk, 1% 20Hz-2MHz RMS
* Max warm-up time: 15 minutes
* Beam pointing stability after warm up: <30 rad
JDSU's air-cooled argon lasers are designed for complex, high-resolution OEM applications such as flow cytometry, DNA sequencing, graphic arts, and semiconductor inspection. Symmetric design and axial airflow in the cylindrical argon ion laser heads provide the best mechanical package to ensure optimum beam-pointing stability and fast warm-up. Both initial installation and routine maintenance are straightforward due to tight production control of optical and mechanical tolerances. Blower-induced mechanical vibration is virtually eliminated through the use of flexible ducting between the laser head and blower assembly.
