Telef arrow ACAT1 acat 1 plus intra-aortic balloon pump
(1) PRE-OWNED AND IN EXCELLENT CONDITION

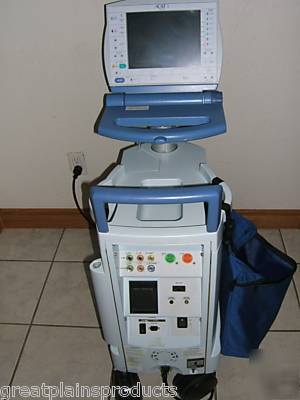

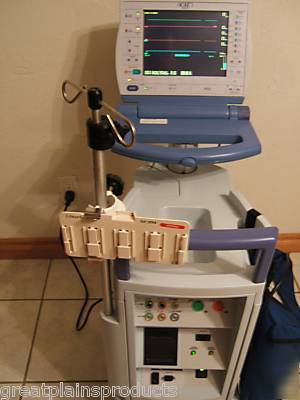

TELEFLEX MEDICAL / ARROW INT'L ACAT 1 PLUS INTRA-AORTIC BALLOON PUMP
This Unit Has Been Inspected & Biomedically Tested By A TELEFLEX MEDICAL / ARROW INT'L FACTORY TRAINED AND CERTIFIED TECHNICIAN ....And Is Guaranteed To Function To MANUFACTURER Specifications So That You Can Be Assured That The System Will Be Fully Functional Upon Arrival.
.....This Unit Is Patient Ready, In Excellent Condition And Has Been Biomedically Inspected.
*INCLUDES BRAND-NEW PANASONIC BATTERY

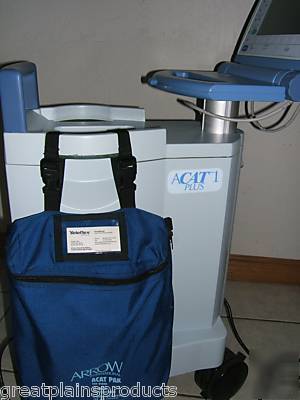

ACAT 1 PLUS Intra-Aortic Balloon Pump
Microprocessor-based system architecture

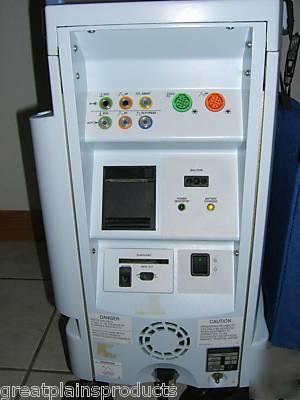

Modular system consisting of display/control module and pneumatic drive unit

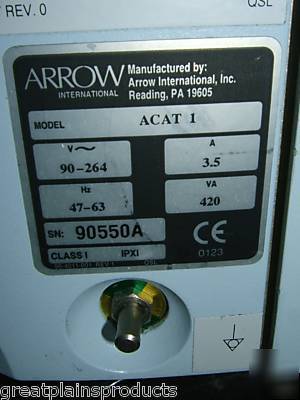

AC requirements: 90-264 VAC, 47-63 Hz.
Avg. power consumption: 225 watts.
Max. power consumption: 420 watts
Battery operating time: two-hour minimum with full charge (optional four-hour minimum)
Battery recharging time: 80% in four hours from full discharge (additional two hours with second battery)
9-1/4" high (23.5cm) x 13-3/4" wide (35cm) x 2" deep (5cm)
28" high (71cm) x 12" wide (30.5cm) x 20" deep (51cm)
Control module: 5 lbs. (2.27 kg)
Pneumatic drive unit: 86 lbs. (39.09 kg)
Drive system:Stepper motor-driven bellows

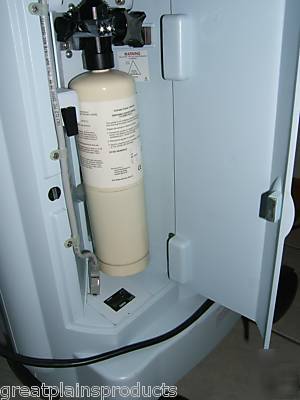

Helium tank: Disposable canister (500 psi) or refillable (2200 or 2900psi) HZL size cylinders
Pumping volume: 0.5 cc.-50 cc., adjustable in 0.5-cc. increments
Counterpulsation rate: 40-200 pulsations/minute
Thermoelectric system removes moisture continuously from pneumatic system without interrupting counterpulsation.
Microprocessor-based waveform trigger detection algorithms
Pulse width 0.1-0.5 ms and pulse amplitude =>+ 5 mV
Pulse width => 0.5 ms and pulse amplitude =>+ 2 mV
Arterial pressure (AP): Microprocessor-based waveform trigger detection algorithms
Internal (INT): Default to 80 bpm; adjustable 40-120 bpm
Filtering: Diathermy, 50/60 Hz notch, 25 Hz low pass

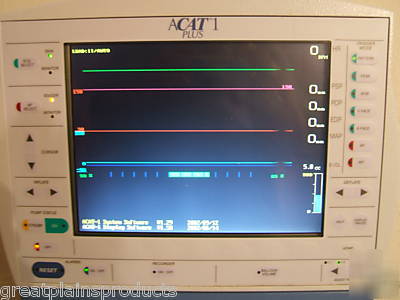

Type: High resolution color LCD flat screen
Three-channel multicolor waveforms ECG: green trace with highlighted white on assisted portion Arterial pressure: red trace calibrated for direct reading of arterial pressure, highlighted white on assisted portions
Balloon pressure: Blue trace calibrated in mmHg
Timing reference display: Bar graph displays inflate/deflate events as well as numerical timing settings
Cursor: Measurement of AP and BPW waveforms
Patient hemodynamics: (heart rate, arterial pressure, peak systolic pressure, peak diastolic pressure, end diastolic pressure, mean arterial pressure, optional BPW) Operations status: (helium tank pressure, alarm/battery charge status)
Diagnostic alarm/help messages: (preprogrammed troubleshooting prompts/help)
Inflation, 20-80% of R-R interval
Deflation, 30-120% of R-R interval
Inflation, 0-35% of R-R interval
Deflation, 35-75% of R-R interval
Atrial fibrillation: Inflation 80-430 ms after previous
Dual-channel dot matrix; dot density 400 dots/inch, 25mm/sec.
Waveforms: ECG, arterial pressure, or balloon pressure (one or two recorded) Alphanumeric: Date, time, patient hemodynamics, trigger mode, assist ratio, balloon volume, ECG lead, alarm condition
Freezes approximately seven seconds of patient data on screen.
