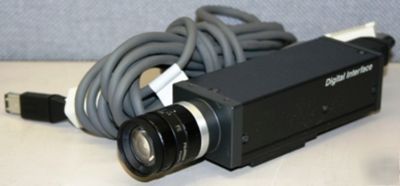

Sony XCD-X710 Firewire Monochrome Camera w/ Fujinon HF9HA-1B
w/ Fujinon HF9HA-1B 9 mm F1.4 Fixed Focal Lens with C-Mount and Locking Iris/Focus for 2/3-Inch CCD, Industrial and Machine Vision
The XCD-X710 camera is the latest addition to Sony's IEEE 1394 digital camera family. The XCD-X710 camera employ a progressive scan CCD with square pixels, making it ideal for a variety of industrial applications. The XCD-X710, the XGA version of the XCD-SX910, incorporates a 1/3 type 800,000 pixels(1024x768 Pixels) CCD. The camera incorporates an external trigger function, allowing for fast moving objects to be clearly captured or still images in low light environments. A variety of convenient features such as partial scan (16 x 16 zones) and selectable output modes (frame rate/bit depth) make this camera extremely flexible.
* High resolution with progressive scan square pixel CCD
* IEEE 1394 Digital Camera Specification Ver. 1.30 compliant
* 8-bit (Mono8) or 10-bit (Mono16) output
* External trigger input/Exposing output function (BNC)
* Partial scan (16 x 16 selectable zones)
* Binning function (2 x 1, 2 x 2)
* Fast hardware or software asynchronous trigger
* Auto/Manual gain (0 to 18 dB, 0.035 dB steps)
* High shock and vibration tolerance
* Lead-free solder mounting board
* Image Device: 1/3 type progressive scan IT CCD
* Effective Picture Elements: 1,034 (H) x 779 (V); 800,000 pixels
* Output Image Size: XGA: 1,024 (H) x 768 (V)
* Cell Size: 4.65 m (H) x 4.65 m (V)
* Minimum Illumination: 4 lx (F0.95 lens open, +18 dB gain)
* Digital Interface: IEEE 1394-1995
* Transfer Rate: 400/200 Mbps
* Frame Rate: 30/15/7.5/3.75/1.875 fps
* Gain Control Auto/Manual: (0 to 18 dB, 0.035 dB steps)
* External Shutter: 1/100,000 to 17.5 s
* External Trigger Shutter: Trigger start (mode0), trigger start and exposure duration (mode1)
* Partial Scan: 256 zones (16 x 16)
* Power Requirements: DC 8 to 30 V (from IEEE 1394 camera cable)
* Dimensions: 44 (W) x 33 (H) x 116 (D) mm (1 3/4 x 1 15/16 x 4 5/8 inches)
* Operating Temperature: -5 to +45 C (23 to 113 F)
* Storage Temperature: -30 to +60 C (-22 to +140 F)
* Operating Humidity: 20 to 80% (non condensing)
* Storage Humidity: 20 to 95% (non condensing)
* Vibration: 10 G (20 to 200 Hz)
* Regulations: UL60950 listed, FCC Class B Digital Device, CE (EN61326)
The Fujinon HF9HA-1B is a very high quality C-mount lens designed for industrial applications like robotics and machine vision. It is intended to deliver quality images when mounted on cameras with as much as 1.5 megapixel resolution. Among its features this lens has locking focus and iris rings so it can operate consistently in jobs where the camera may experience significant vibration.
* High Resolution Optics for High Resolution Cameras - This lens was designed with quality glass and advanced anti-reflective coatings to produce detailed images in harsh environments. Fujinon developed this lens to work on cameras with up to 1.5 megapixel sensors.
* Manual Adjustments - The HF9HA-1B is a completely manual C-mount lens designed for high quality images in potentially difficult applications. Often the manufacturing process can shake or vibrate machinery which can be an issue that needs to be managed when using video for quality control and production. This lens has locking iris and focus rings so those settings do not change over time.
* Narrow Field of View - What good is a lens that doesn't aim decidedly at your target area of action? The HF9HA-1B delivers a medium angle of view so you'll see exactly what you need to see. This lens produces a 33 horizontal angle of view, with a 25 vertical angle. Its MOD (minimum object distance) is a very macro 0.1 meters or about 4 inches.
* Imager Size: 2/3-Inch CCD
* Maximum Angle-of-View: 29 52' Horizontal Angle of View / 22 37' Vertical Angle of View
* Minimum Object Distance (M.O.D.): 4 Inches / 0.1 Meter
* Dimensions (WxHxD) 1.3 x 1.3 x 1.1 Inches / 35 x 35 x 29.5 mm / 27 mm Filter Thread
