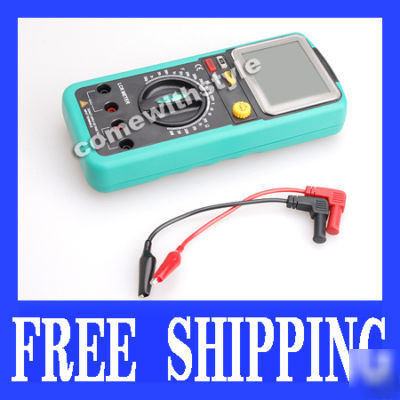

Portable digital lcr electric bridge l/c meter
Display: 31/2 digit LCD with a maximum reading of 1999
Polarity: Automatic, positive implied, negative polarity indication
Over rang: (OL) or (-OL) is displayed
Low battery indication: The "-,+" is displayed when the battery voltage drops below the operating level
Measurement rate: 2.5 times per second, nominal
Operating Environment: 0 to 40 at < 70% relative humidity
Storage Temperature: -20 to 60 , 0 to 80% R.H. with battery removed from meter
Accuracy: Stated accuracy at 23 5 , < 75% relative humidity
Power: single standard 9-volt battery, NEDA 1604, JIS 006P, IEC6F22 (not included)
Battery Life: 30 hours typical with carbon-zinc
Dimensions: 200H 85W 38D (mm)
Accessories: one pair test leads and operating instructions
Overload protection: All ranges 250VDC or AC rms.
Temperature Coefficient: 0.5 F: 0.1%/ , > 0.5 F: 0.2%/
Sell for $150 and up at most retailers !
