Norfield magnum door, jamb & hinge machining center

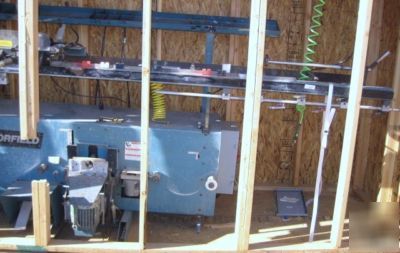

This listing is for a door and jamb manufacturing machine.
NOTE: I have approximately 20 more pictures of this equipment. Please contact me if you'd like me to email you the other pictures.
* Make: Norfield Manufacturing
Here is some information from the manufacturer. Please note that the Magnum has been revised/updated over the years. Some minor details may vary between Norfield's current specifications and older specifications. This listing is for the exact unit described above. If you have any questions or concerns regarding this, don't hesitate to call or email us.
The Magnum, a long-time standard in the industry, combines the speed and versatility necessary to process interior and exterior doors and jambs.
* CUSTOM INTERIOR OR EXTERIOR DOORS
* RAISED MOLDING COMPATIBLE

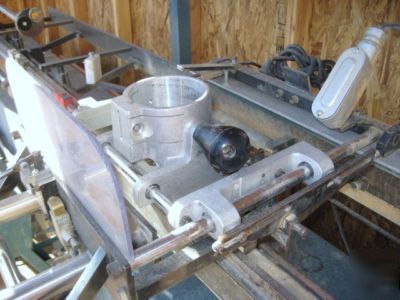

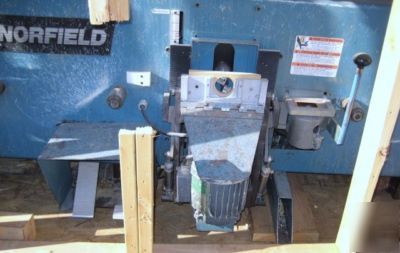

Rugged butt router carriage cuts precise 3-1/2 to 5 hinge mortises time after time.
Process either single or double bevel doors and still maintain perfectly flush-fitting hinges.

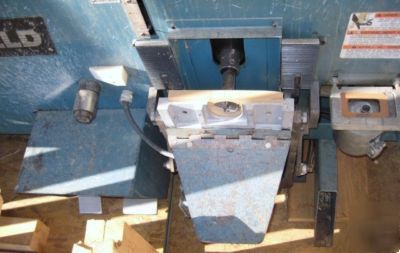

Door clamping system secures the door without marring it as it is being processed. This unique design accommodates a variety of doors, including those with raised molding.Reversible cutterhead blades can be easily replaced.
Standard cutterhead size is a 2 blade unless you are running 2-1/4 doors, which require a 2-1/2 blade. Blades are always in stock at Norfield.
* Machine doors from 4 to 9 tall and from 1 to 4 wide

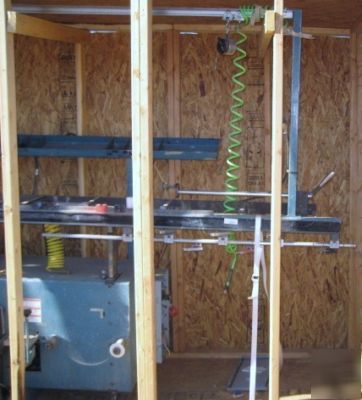

* One 8 (for doors up to 8) and one 9 integrated stop systems for quick change between pre-set hinge patterns
* Partial lock boring for door pulls
* Pneumatic jamb lift adjustment to ensure a perfect fit
* 3.5 faceplate mortising for beveled doors
* Insert cutters for low cost cutting blade replacement
* Single point dust collection plumbing increases operator safety
* Self-centering butt router for easy hinge mortising
* Self-centering face plate mortising
* Variable speed power feed allows for soft and hardwood doors
* Auto-start and power lift on faceplate router for ease of routing
* Infinite door width adjustment
* Door Width 1'0" 4'0"
* Door Height 4'0" 9'0"
* Door Thickness 1-3/8" 2-1/4"
* Jamb Width 2-1/2" 10-1/2"
* Jamb Thickness 1/2" 1-5/8"
* Hinge Size 3-1/2" 5"
* Hinge Radius 1/4" 5/8"
* Lock Backsets 2-3/8" 5"
* Faceplate Router up to 1-1/4" x 2-3/4"
* Infeed Height 16" 20"
* Outfeed Height 16" 20"

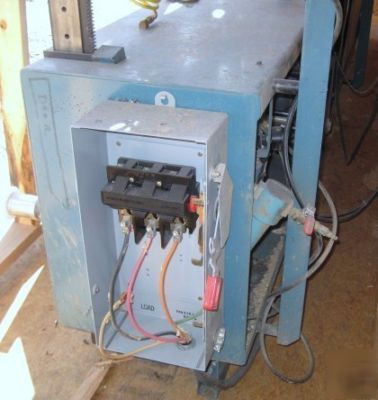

* or 460V 3 Ph @ 25 Amps
* 8.5 CFM @ 90 PSI for manual screwdriver
* 10 CFM @ 90 PSI for auto screwfeed or pre-drill
This is used and in good condition. It is not a 'rebuild'. It came from a company that recently downsized. The machine is guaranteed to be in proper working order. Please call or email if you have any questions about this.
