Eaglematic hps-36 inline on the fly punch saw machine

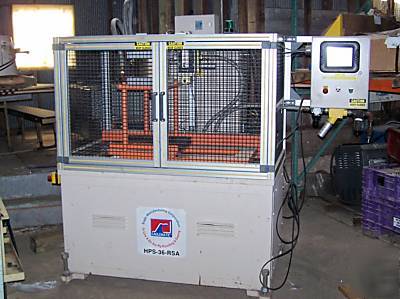

Eaglematic HPS-36-RSA Inline On The fly Punch & Saw Machine
This machine is listed in another listing with 2 other machines, Priced to move. Click the link below
We will consider and respond quickly to all best offers...
Heavy Duty steel fabricated base normalized and ground
Servo Roller Screw tool carriage actuator
Traveling carriage with automatic

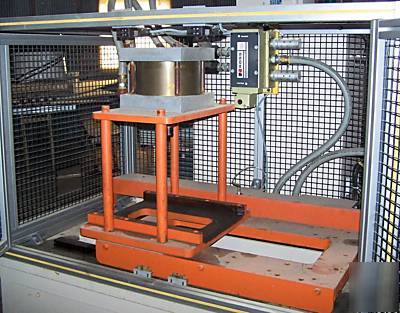

On-the-Fly synchronized punching to the extrudate
Heavy Duty linear style guide rails and ball bearing housings

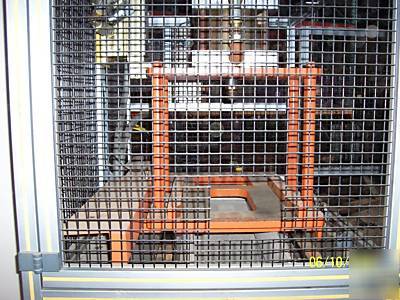

Modular aluminum construction safety cage with black powder coat mesh
Rear mounted main electrical control panel
Four Heavy Duty swivel casters with urethane coated wheels 6"

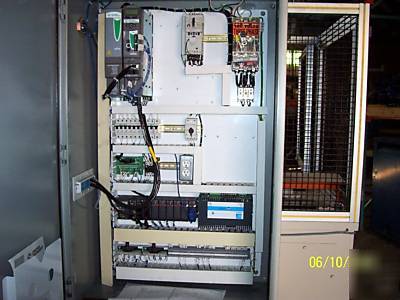

Single door NEMA 12 control panel with 460 V flange disconnect
Emerson servo drive with synchronization module
Cage mounted enclosure with an 8" PLC Direct Logic touch screen controller
Stack Pole light with 'X' number of lights 3
Emergency 'E' STOP (two places)
Machine Wt. w/o Tooling: 3000 Lbs
Operator Lock Out Options: S/Cage Interlock or L/C
Part Removal Options: angular part chute
Feel free to contact me with any questions
