26" swg 1.6HP spdl leland-gifford 2L-1S-26 drill press,
26" Swg 1.6HP Spdl Leland-Gifford 2L-1S-26 DRILL PRESS,

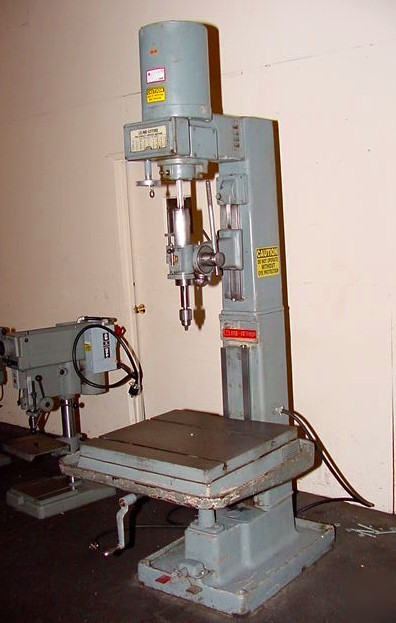

26" Swing 1.6HP Spindle Leland-Gifford 2L-1S-26 DRILL PRESS, T-Slotted Table, 2MT, Heavy Base
26" LELAND GIFFORD FLOOR DRILL
MODEL: 2LS S/N: 2L-1S-26-11581 NEW: 1967
DRILL TO CENTER OF CIRCLE ........................... 26"
SPINDLE TAPER ...................................... #2MT
SPINDLE TRAVEL ....................................... 5"
HEAD TRAVEL ON COLUMN ................................ 9"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE .............. 29"
LOW RANGE ...................... 90, 135, 180 AND 270 RPM
HIGH RANGE ................. 600, 1200, 1800 AND 3600 RPM
WORKING SURFACE OF TABLE ...................... 26" X 25"
TABLE TRAVEL UP AND DOWN ............................ 16"
APPROXIMATE FLOOR SPACE .............. 49" X 33" X 93"HT.
APPPROXIMATE WEIGHT .......................... 1,800 LBS
RAISING AND LOWERING MECHANISM OF HEAD AND TABLE
1.35 / 1.67 HORSE POWER DRIVE MOTOR
