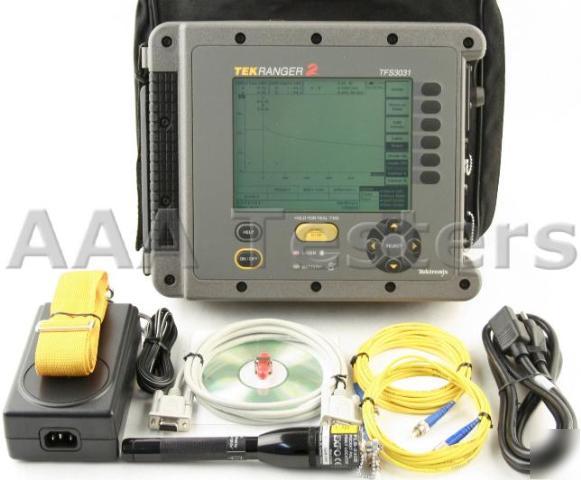

Tektronix TEKRANGER2 TFS3031 sm fiber tekranger 2 otdr
* Tektronix TFS3031 TekRanger2
* Tektronix Target 1 Trace & Emulation Software
* Soft Carrying Case w/ Strap
Tektronix TekRanger2 TFS3031 Singlemode 1310nm & 1550nm OTDR
Includes EXFO FLS-235B Pocket Pal VFL, Carrying Case w/ Strap & Full Accessories!
* One-button Fully Automatic IntelliTrace Fiber Analysis
* Singlemode Distance and Loss Measurements Traceable to NIST
* Large, Backlit, High-resolution Display
* Keyboard Port and Optional Mini-keyboard
* RS-232 and Parallel Ports for Printing and PC Access
* Shock, Water and Dust Resistant
* Selectable Splice Loss and Reflectance Thresholds
* Files are Compatible with FiberMaster OTDR, TARGET1 , PC Spreadsheets
* Installation and Acceptance Testing of Fiber Optic Networks
* Fiber Optic System Maintenance Testing
* Locating Optical Cable Faults During Restoration
* Optical System Documentation
If your job is to install, maintain or restore optical fiber, the TekRanger 2 TFS3031 mini-OTDR with IntelliTrace Automated Fiber Analysis System is a rugged, easy-to-use, mini-optical time domain reflectometer (OTDR) that's built for you. It's designed to stand the rigors of field work, while providing precise measurements on singlemode optical fiber systems in an economical form factor.
The IntelliTrace System Advantage
IntelliTrace technology automatically adjusts and optimizes test parameters so you don't have to. Just press the Start/Stop button and it will provide the best possible resolution, while maximizing dynamic range to give you the most accurate measurements available in a mini-OTDR today. One IntelliTraceFilter acquisition provides consistent, repeatable and accurate results. The location, reflectance and loss of every splice appears quickly and clearly on the large, high-contrast display.
The TFS3031 is the only mini-OTDR that can locate an event at 10 meters while also finding an end at 70 km away with the push of a single button. No need for multiple acquisitions to get a complete picture of your fiber, either with a displayed trace or an event table. You get greater productivity in labor with less training.
The TekRanger 2 TFS3031 offers traceability on distance and loss measurements. This means that both the hardware and the software are included in our accuracy specifications. What this means to you is that you can count on the TFS3031 mini-OTDR to provide the most reliable and repeatable measurements of any OTDR in the world.
Test results can be stored in the TFS3031's ample internal memory or collected on the optional floppy disk drive. Microsoft Windows based TARGET1 software package gives you virtually unlimited flexibility when analyzing and documenting your spliced fibers.
The TFS3031's optional disk drive and RS-232 port permit updating of the unit's firmware in the field so you can easily keep up with the latest technology.
Distance Measurements - Meters, feet, miles.
OTDR Distance Range Settings - Singlemode: 1 to 240 km.
Distance Resolution (IntelliTrace ) - 1.25 m to 40 m.
Horizontal Time Base: 1.25 m 1.25 m 10-5 x distance.
Vertical Linearity: 0.02 dB/dB.
System Measurement Accuracy*4 -
Reflectance Accuracy - Exceeds Bellcore GR-196-CORE*2.
Measurement Time (Auto) - Less than 3 minutes (20 dB loss).
Display - High resolution 640 x 480; 7.2 in., high contrast; operator switchable backlight.
Selectable Pulse Widths - 1 m, 5 m, 10 m, 20 m, 50 m, 100 m, 200 m, 500 m, 1000 m, 2000 m.
100 traces in internal memory (typical).
3.5 in. floppy disk drive (optional).
Output Ports - RS-232 serial; Centronics parallel printer, mini-DIN (keyboard).
Power Options - AC (100 to 240 V, 50 to 60 Hz). DC Operation: 9 to 16 VDC. Internal NiCad rechargeable battery (4 hours of operation depending on operating mode).
Class 1 per CEI/IEC 825-1: 1993.
Options 3T, 4T and 7T are Class 1.
Environmental (without internal disk drive)
Nonoperating: -20 C to +60 C.
Storage Temperature - -20 C to +60 C.
Relative Humidity - 5% to 95% (noncondensing).
Field Usage*2 - Shock, water and dust resistant.
Safety - UL 3111-1, CSA 1010.1.
*1 Typical performance @ 25 C.
*3 Excludes uncertainty in fiber IR and cabling factor.
*4 Verified on NIST traceable calibration system, singlemode options only.
