20" swg 120" cc birmingham ycl-20120 engine lathe, 10 h
20" Swg 120" cc Birmingham YCL-20120 ENGINE LATHE, 10 H

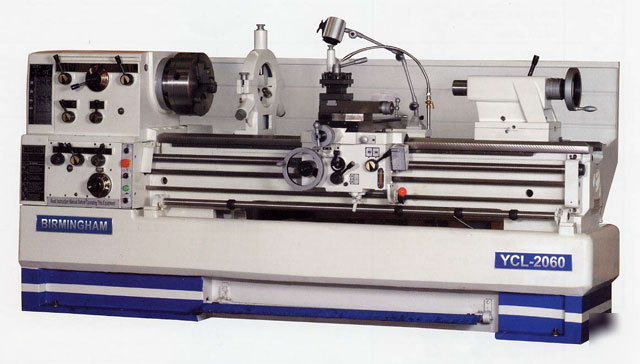

20" Swing 120" Centers Birmingham YCL-20120 ENGINE LATHE, 10 HP, 12 Speed, 3-1/8" Spindle Bore
Model: YCL-20120 with Removable Gap Bed
D1-8 SPINDLE WITH 3-1/8" SPINDLE BORE
60 KINDS OF INCH THREADS FROM 112 - 2 TPI
47 KINDS OF METRIC THREADS FROM 0.2 - 14MM
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS
MAX. EFFECTIVE CUTTING LENGTH: 116"
MAX. SWING OVER CROSS SLIDE: 11-7/8"
DIAMETER OF SPINDLE THRU BORE: 3-1/8"
TAPER OF SPINDLE CENTER: MT#7 / MT#5
SPINDLE SPEEDS, 12 STEPS: 25,35,55,80,120,170,235,350,525,700,1100,1600 RPM
LONGITUDINAL FEEDS: 35 KINDS, 0.0022" - 0.0612" REV.
CROSS FEEDS: 35 KINDS, 0.00048" - 0.01354" REV.
METRIC THREADS: 47 KINDS, 0.2 - 14MM
INCH THREADS: 60 KINDS, 112 - 2 TPI
MODULE THREADS: 39 KINDS, 0.1 - 7MM
DIAMETRAL PITCH THREADS: 50 KINDS, 4 - 112 DP
MAX. TRAVEL OF CROSS SLIDE: 12-15/16"
MAX. TRAVEL OF TOP SLIDE: 5-1/8"
LONGITUDINAL LEADSCREW DIA/PITCH: DIA. 1-5/8" / 4 TPI
TAPER OF TAILSTOCK QUILL CENTER: MT#5
MAX. TRAVEL OF TAILSTOCK QUILL: 7"
POWER OF MAIN MOTOR: 10 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
POWER OF COOLANT PUMP: 1/8 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
- 6-1/2" STEADY REST W/ROLLERS
- 4-POSITION AUTOMATIC KICK-OUT
- 12" STEADY REST WITH ROLLER JAWS
- 5C HAND LEVER TYPE COLLET CLOSER
