Raz-ir sx pro thermal video camera (save $1000 )


http:// / View Links for YouTube Demonstrations and Product Info
http:// /ProductDetails.asp?ProductCode=01RAZIR-PRO

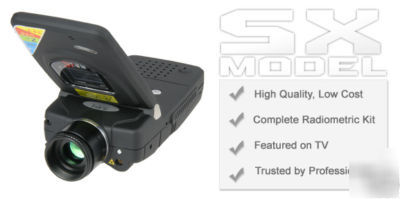

The RAZ-IR SX Model is a full Featured Radiometric infrared camera with impressive capabilities. This small and unique imager boasts a 60hz TV refresh rate and comes with so many included features.
The RAZ-IR SX infrared cameras can help locate missing insulation, air infiltration, incorrectly installed materials, improper caulking, roofing leaks / defects, black mold or hidden water damage and many more costly problems in buildings and homes.
With its ultra sensitive Focal Plane Array the Raz-IR Infrared Camera system is ideal for detailed thermal circuit board analysis and product design. The above image shows the true thermal profile of a custom cooling heat sink used by a prominent PC motherboard manufacturer.
Imaging Performance (PRO Model)
Uncooled FPA Microbolometer, with image correction and full auto imaging and instant image enhancement.
TV rate real time 60 hz sensor
8-14 m LWIR Long Wave Infrared
25 19 - Point and shoot imaging
Built- in Digital Video colors (pro only*)
CMOS Sensor, 640 x 480 pixels, auto balance and auto gamma.
2.2 TFT active matrix High resolution color
256 level, 8 palettes (Rainbow, iron, B&W, etc) custom palettes user defined.
Fully Digital with onboard and post processing manipulation
Spot / manual (up to 4 moveable), spot / automatic placement at max, area (up to 4 moveable) displaying either max, min, or average, isotherm, line profile, auto alarm
Variable from 0.01 to 0.99 (in 0.01 increment)
Automatic correction based on user input for reflected
Ambient temperature,distance, relative humidity,atmospheric transmission and external optics
Built-in Flash memory (8G bit capacity)
IRI (An individual file consists of infrared image, visual
Variant for different files, up to 180 seconds per file. User can record a voice comment to every image saved
Shows status of battery, indication of power
Automatic alarm for low battery + audible Alarm for max/min temperature rise/fall,

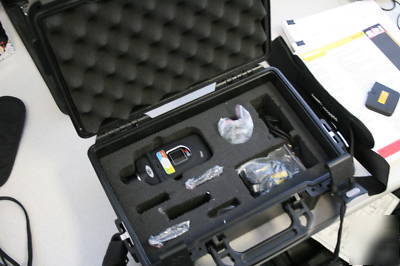

Li-ion battery, rechargeable, field replaceable (4 Batteries included)
Over 2 hours continuous operation per battery
In camera via USB interface from AC adapter (96-
250 VAC) or in battery charger
Operating and storing 10% to 95%, non- condensing
Image (thermal & visual), measurement, voice and digital video transfer to PC
120mm 60mm 30mm (Standard Model)
NOTE: SOFTWARE NOT INCLUDED IN THIS SALE
