Raven rpr 310 with novatel antenna and cables

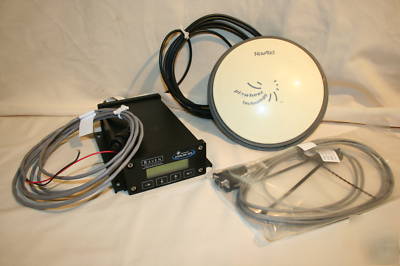

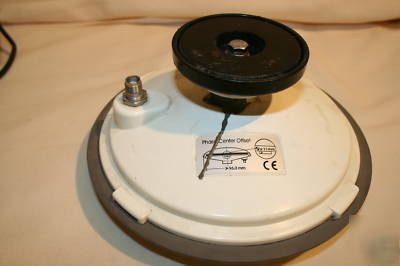

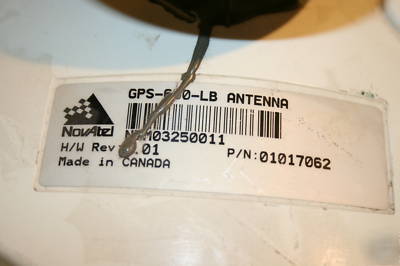

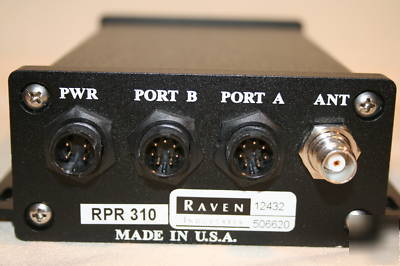

Up for sale is a Raven RPR 310 Receiver with NovAtel Antenna-p/n: 01017062 (mount on antenna was cracked and repaired as shown on pictures)
Includes: Power cable (115-0171-118), Antenna cable (115-0171-117) and 310/210 to PC cable (115-0171-272)
* Sub meter differential GPS accuracy
* 10 Channel GPS, dual channel beacon, WAAS, L BAND (OmniStar) receiver
* Can receive Coastguard beacon
* Position solutions at 10 per second
* Front panel user interface for convenient configuration
* Two serial RS232 I/O ports
* Supports almost all NMEA format messages
* Advanced message features including time tagging & port pass through
* Simulated Doppler radar output
* Rugged, weatherproof enclosure
* Channels: 10 Channel, parallel tracking tracks up to 10 satellites, L1 GPS L1, C/A code with carrier phase smoothing
* Position Update Rate: up to 10 Hz
* Accuracy: Differential accuracy better than 1 meter horizontal RMS (assumes>/=4 satellites, PDOP<4)
* Cold Start: 6 minutes (typical)
