Usa made gaertner precision toolmaker's microscope

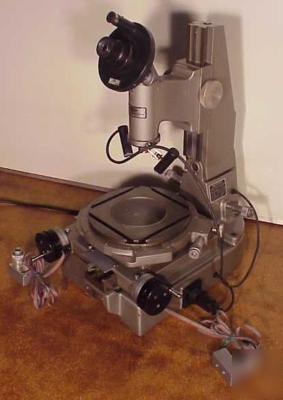

GAERTNER TOOLMAKER'S MICROSCOPE

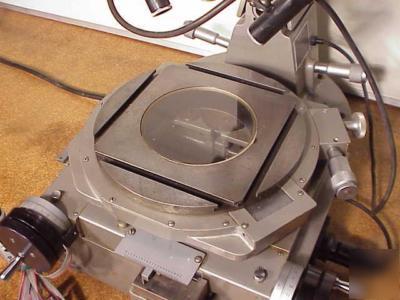

WITH ROTARY STAGE THAT ROTATES FULL 360 DEGREES AND IS 7-5/8" DIAMETER

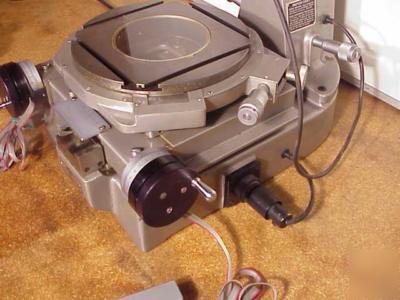

DIVISION OF MICROMETER HANDWHEELS .0001"
LONGITUDINAL MOTION LEFT TO RIGHT 4" WITH GAGE BLOCK
CROSS MOTION (REAR TO FRONT) 2"
FIELD, DIAMETER ON OBJECT .255"
WORKING DISTANCE (OBJECTIVE TO WORK) 2.500"
STAGE ROTATION FOR ALIGNING WORK, PLUS/MINUS 5 DEGREES

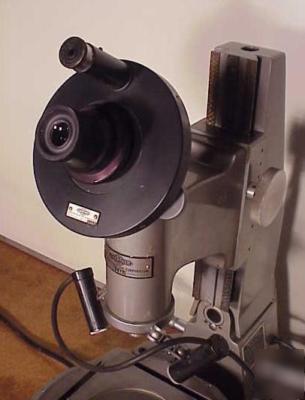

TILT OF COLUMN, EACH SIDE VERTICAL PLUS/MINUS 8 DEGREES
HAS 2 TABKE ILLUMINATORS, AND SUBSTAGE ILLUMINATOR

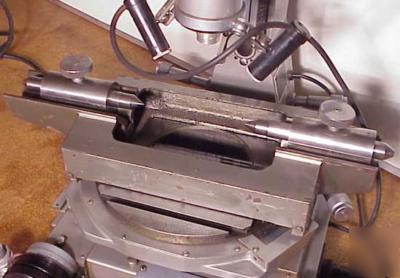

INCLUDES CRADLE WITH MALE/FEMALE CENTERS

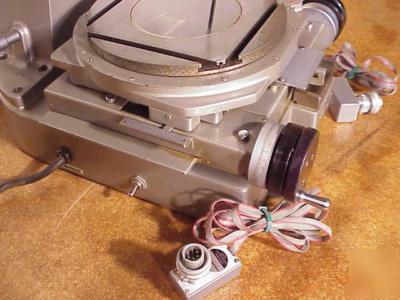

UNIT HAS CABLES FOR D.R.O. MADE BY SPAULDING INSTRUMENTS (6 PIN CONNECTORS) FOR USE WITH ROTARY ENCODER (DRO NOT INCLUDED)
VERY NICE CONDITION WITH CLEAR OPTICS
