> 1 hp leeson #110088 1725 rpm farm duty motor 110088.00

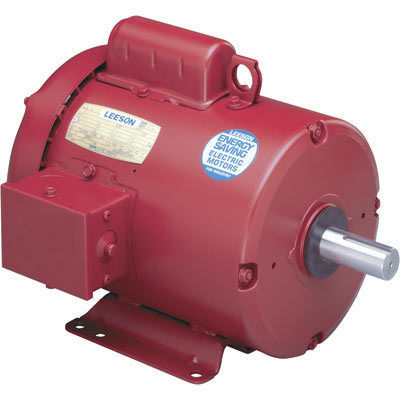

1 hp leeson #110088 1725 rpm farm duty motor 110088.00
NEW LEESON MOTOR - FROM AN AUTHORIZED LEESON SALES AND SERVICE CENTER + ALL MOTORS ARE SOLD WITH FULL FACTORY WARRANTY!
ELECTRIC MOTORS, GEARMOTORS AND DRIVES
1HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MA
Information shown is for current motor's design
View Outline | View Connection
Agricultural and Farm Duty Motors
Our complete line of single-phase Farm Duty / Agricultural Duty Series of motors are designed and built for the tough applications found in the agricultural industry.
Mechanical Features: Gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings are prelubricated with Exxon POLYREX EM grease having operating temperature range of -20 F to+350 F. Rubber boot over manual protector reset button provides weather protection.
Electrical Features: Low temperature manual overload protector protects against extreme overload. Class F copper windings and varnish. Capacitor start provides high starting torque with normal starting current.
WE ARE A LONG TIME EXPERIENCED LEESON AUTHORIZED SALES AND SERVICE CENTER - IF YOU HAVE ANY QUESTIONS PLEASE ASK - WE CAN ANSWER ANY QUESTIONS YOU MAY HAVE ABOUT THIS ITEM.
