T-962A lcd V3 smt smd bga ic reflow bench top oven

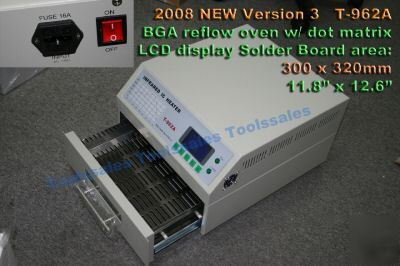

Toolssales Version 3 Large INFRAREO BGA SMD reflow oven T-962A
This new version reflow oven feature a on board micro-computer control with dot matrix LCD display. This enhanced this oven to very flexible tools for everyday SMD/BGA soldering tools

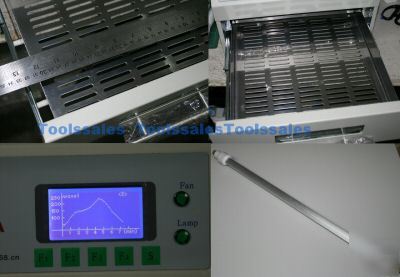

The LCD graphic display show the Target temperature curve and the current temperature ( a + symbol over the display) in real time. This gives you a clear picture of the status of the reflow process.
This version 3 feature the original version 1 long life infrared element and ball bearing high temperature cool fan, which is a special build version from Toolssales that you can t find it anywhere else.
New draw window also allow easy to view the board in progress and detect if any detect.
This unit design to use in SMD BGA re-balling or Soldering application. Whole soldering process complete automatically , yet easy to use and LCD menu driven.
Accurate temperature by responsive infrared radiation heating and circulation.
Large oven size soldering area to reach effectively :300 320mm, ( 11.8 x 12.6 ) Increase the usage scope of this machine consumedly, economical investment.
Solder most SMD small parts, example as CHIP,SOP,PLCC,QFP,BGA package etc;
Total 1500W Output power, fast infrared radiation and circulation design. Accurate and even temperature distribution.
Eight memory slot with 4 standard preset to store your waves temperature parameter. The soldering process completed automatically by press few button.
Quick 4 preset wave curve as following can be select by quick menu button:
Wave one, use the same with 85Sn/15Pb 70 Sn/30Pb
Wave two, use the same with 63Sn/37Pb 60 Sn/40Pb
Wave three, use the same with Sn/Ag3.5; Sn/Cu 75 Sn/Ag4.0/Cu.5
Wave four, use the same with Sn/Ag2.5/Cu.8/Sb.5; Sn/Bi3.0/Ag3.0
Wave five, use the same with The red gum standard cure to soild , referenc to PD955M.
Wave six,seven,egiht, optional.
Press F1 button to start cooling, Press F1/S key again to stop. Press F2 button to strat heat up, Press F2/S key again to stop.
Soldering max area: 300 320 mm
Supply: AC220V model A / 110V model B both in stock
All purchased are final, will replace defective product.
Return package must be in the original packaging, everything must be in new condition.
