Shop fox vertical mill with power feed -model# M1001

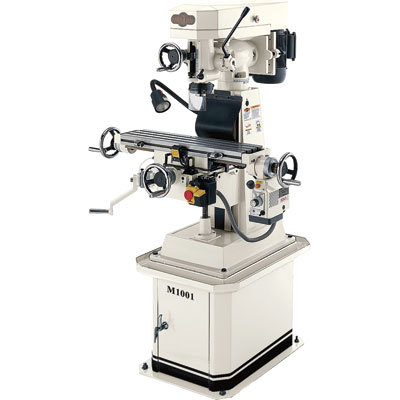

SHOP FOX Vertical Mill with Power Feed -Model# M1001
The SHOP FOX Vertical Mill M1001 is great for the small shop that wants a compact unit. Features a 1 1/2 HP motor with 9 speeds ranging from 240 to 2760 RPM. A variable speed power feed with rapid override efficiently moves the 6 1/8in. x 26in. table back and forth along its 15 7/8in. travel. Both the head and column rotate 45 in both directions. A single shot lubrication system makes maintenance quick and easy! HP: 1 1/2, Volts: 110/220V pre-wired 110V, Speed (RPM): 240 - 2,760, Speeds (qty.): 9, 360 Head Swivel: Yes, Draw Bar: Yes, Drilling Capacity (in.): 1, Chuck Size (in.): R - 8, Max. Spindle Distance (in.): 12 1/2, Worktable L x W (in.): 6 1/8 x 26, Light Included: Yes, Stand Included: Yes, Dimensions L x W x H (in.): 41 x 45 1/2 x 68 High precision-ground vertical and cross ways Class 7 spindle bearings Milling head micro-feed Head tilts to 45 both ways 90 rotation on horizontal surface Built-in coolant pump Spindle travel: 3in. T-Slots: 3 on 1 9/16in. centers, 3/8in. studs Table travel (longitudinal): 15 5/8in. Table travel (cross): 6in. Max. drilling capacity for cast iron: 1i. Max. drilling capacity for steel: 3/4in. Head tilt: 45 R & L Ram swiveling angle: 45 R & L
