Atten AT5011 (a) spectrum analyzer 1050MHZ 5011A

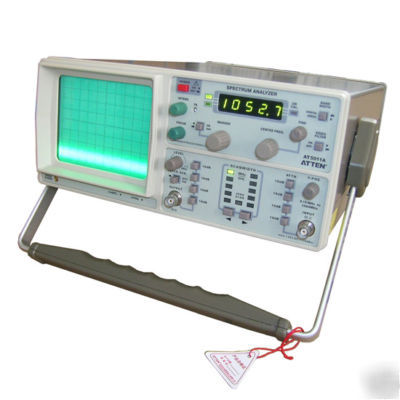

ATTEN AT5011A 1050MHz Spectrum Analyzer with tracking generator - Free Gift
Spectrum Analyzer ( AT 5000 Series)
Model: AT 5011A with tracking generator
AT5000 series spectrum analyzer will exceed 1Ghz(0.15~1050MHz) have the glancing or fine adjust center frequency with the 100KHz/grid~100MHz/grid span select, compose the simple frequency-domain. One 4 and 1/2 bit LED display can be selected for the center frequency and marking frequency reading.AT5011A have a tracking generator, this instrument can be used to the pre-research testing. can detect the mobile phone s RF circuit s native signal, intermediate frequency, radiation signal etc. the spectrum analyzer is used to examine and repaired that mobile phone can t going the web, very conveniently and exactly.
Frequency range: 0.15~1050MHz
4 and 1/2 digital displays. (Center frequency, 0.1MHz resolution)
-100~+13dBm amplitude range, 20MHz, 400MHz center frequency span and 4 KHz video filter.
Output amplitude :+0~-50dBm(50 )
Frequency range: 0.15 to 1050MHz
Center frequency display accuracy: 100kHz
Marker accuracy: 0.1% spans 100 kHz
Resolution of frequency display: 100 kHz (4.5 digit LED)
Frequency scans width accuracy: 10%
Frequency stability: better than 150 kHz/ hour
IF Bandwidth (-3dB): 400 kHz and 20 kHz;
Amplitude range: -100dBm to +13dBm
Screen display range: 80dB (10dB/div.)
Reference level: -27dBm to +13dBm (in 10dB steps)
Reference level accuracy: 2dB
Average noise level: -90dBm (20 kHz Bandwidth)
Distortion: < -55dBc of 2nd and 3rd harmonic
Third order intermod.: -70dBc (two signals > 3MHz apart)
Sensitivity: Better than -90dBm
Log scale fidelity: 2dB (without attn.) 500MHz
Input attenuator: 0 to 40dB (4 10dB steps)
Input attenuator accuracy: 1dB/10dB
Max. Input level: +10dBm, 25V DC (0dB attn.) +20dBm (40dB attn.)
Frequency scans width: 100 kHz/div. to 100MHz/div, in 1-2-5 steps and 0Hz/div. (Zero Scan)
* Most item will arrive within 8-14 business days. It depend on your location. In some cases. Please contact the seller if you want express postage, additional postage fees apply.
Please note that this model AT5011A consist of tracking generator.
The other similar model AT5011+ consist of both tracking generator and audio output function. The price for AT5011+ is USD990. For more detail, please contact us via mib.****@gmail.com
