Brown & sharpe 13 tool & cutter grinder, dro,
Brown & Sharpe 13 TOOL & CUTTER GRINDER, DRO,

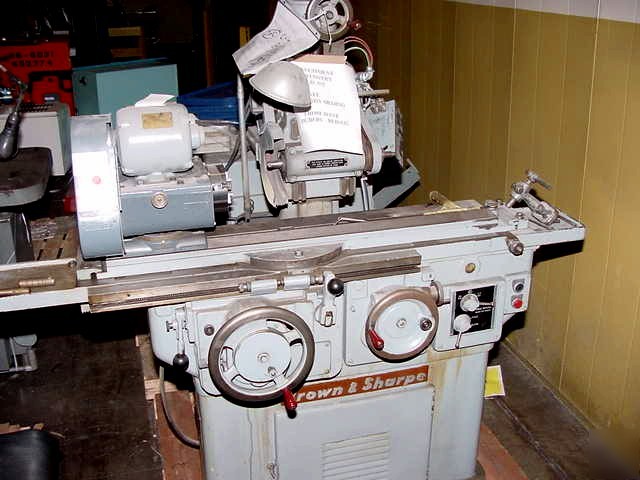

BROWN & SHARPE #13 UNIVERSAL & TOOL GRINDING MACHINE
- GRINDS WORK UP TO ..................... 8" DIAMETER
- GRINDS LENGTH ................................. 14"
- DISTANCE BETWEEN CENTERS ...................... 24"
- GRINDING WHEEL SIZE ............ 7" X 1/2" X 1-1/4"
- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ........................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES
- VERTICAL ADJUSTMENT ........................ 8-3/8"
- ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
- TABLE TRAVEL .................................. 22"
- POWER TABLE SPEEDS (6) ......... 7-3/4" TO 100" IPM
- TRAVEL PER REV. OF HANDWHEEL ............ 1/4" SLOW
- SWIVELS LEFT & RIGHT .................. 100 DEGREES
- SPINDLE SPEEDS (4) ................. 128 TO 540 RPM
UNIVERSAL WHEELHEAD, TABLE & WORKHEAD
DUAL LIVE/DEAD HEADSTOCK SPINDLE
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
VERTICAL HANDWHEEL GRADUATED TO READ .0005"
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
1 H.P. 3/60/220-440 VOLT WHEELHEAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS
** VALUED BY TOOLMAKERS FOR THEIR VERSATILITY, THIS
MACHINE HAS BROAD ADAPTABILITY FOR GRINDING THE
CONTOURS OF MILLING CUTTERS, REAMERS, FORM TOOLS
DOING CYLINDRICAL GRINDING AS REQUIRED BY THE
