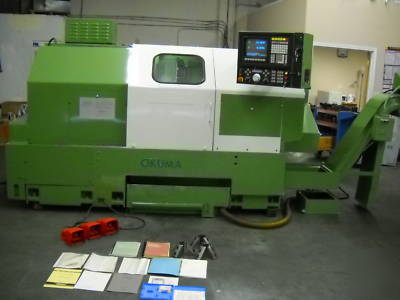

1992 okuma lb-25 LB25 cnc lathe 2.75BORE perfect video
CLICK BELOW TO WATCH THE VIDEO ON THIS LATHE:LOTS OF PICTURES AT THE BOTTOM.
SPECIFICATIONS SUBJECT TO VERIFICATION:
SWING OVER BED..................18.9"
DISTANCE BETWEEN CENTERS........26.5"
MAX. TURNING DIAMETER...........16.5"
MAX. WORK LENGTH................25.6"
TRAVELS (X) AXIS................11.82"
(Z) AXIS................26.61"
SPINDLE SPEEDS..................60 - 3500 RPM
SPEED RANGES....................2
SPINDLE NOSE....................A2-11
SPINDLE BORE....................2.75"
TURRET..........................12 ATC
QUILL TAPER.....................#5
SPINDLE DRIVE...................20/15 HP
WEIGHT APPROX...................15,000 LBS
