Leica M651 surgical microscope microsurg / warranty
G.M.I. is offering the LEICA M 651 / Wild Heerburg 651 SURGICAL OPERATING MICROSCOPE ON A MS-C FLOOR STAND............................
A CONSISTENT STANDARD FOR MANY APPLICATIONS OF MICROSURGERY
THIS UNIT IS IN EXCELLENT COSMETIC CONDITION AS WELL AS TESTED IN EXCELLENT WORKING CONDITION......WARRANTY 90 DAYS
The Leica M651 has been specially designed for use in microsurgery and is well known for its remarkably clear, sharp images, great depth of field, pronounced 3D effect, high light intensity, and its faithful color rendering.
Due to its high performance, the Leica M651 is also used for various technical, industrial and research applications. The brilliant Leica optics in combination with an easy to handle and stable floor stand perfectly support the work in all of these fields and offer an outstanding price performance ratio.
* 5-step magnification changer 6x-40x
* Large depth of field range
* Built-in homogeneous and strong halogen light
* Easy-to-use and stable floor stand, mobile with large casters
* Precise manual fine positioning controls for movement of the microscope
* Large extension of the swingarm
* Modular system with selection of different binocular tubes
* Selection of different co-observation tubes
* Adaptability of various video and photo systems
The Leica M651 is renowned for its clear, outstandingly sharp images, it s great depth of field, its pronounced 3D effect, its high light intensity and its faithful color rendering. In addition it is designed to carry a broad selection of ergonomically optimized binocular tubes, video and photo accessories as well as co-observation tubes.These are all ideal conditions for its use in a large variety of applications in different fields, medical and non-medical.
Equipped with the same quality of optics like all other Leica Surgical Microscopes and the same interface to hold different accessories, it offers a very good value instrument and opens the possibility for future upgrades.
It s mechanical characteristics match perfectly the quality of the optics and provide the necessary precision and control to guide the microscope over the field of interest; with the ergonomically designed handles the microscope can be quickly and with very little effort be moved in all axis and over large ranges.
The Leica M651 is in a class of its own!
THIS UNIT IS IN EXCELLENT COSMETIC CONDITION AS WELL AS TESTED IN EXCELLENT WORKING CONDITION...

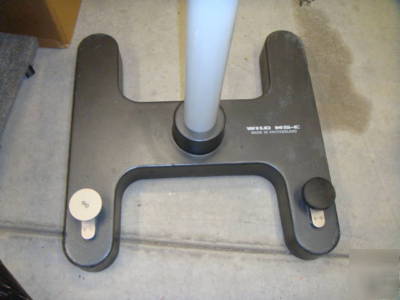

Leica Floorstand, MSC, for M650/M651, with Power Supply1
Leica Binocular, low Incline, 30-150 degree, Type I ...................option to add 0-180Bino............... add$1750.00
Leica Beam Splitter, 50/50, M600 1
Leica Monocular Observation Tube, Long 1
f=350 mm Objective Lens (or may request preference)
OPTION AS SHOWN ASST MONOCULAR SETUP ADD $1000
(option for biono incln. asst package....add $3500)
Precise, fine adjustment of the microscope due to the tiltable joint and microscope carrier which provides full 360 of movement and allows accurate positioning in both the vertical and horizontal planes.
Ergonomic viewing due to a large choice of binocular tubes allows a comfortable posture for the surgeon in any of the wide variety of instrument positions.
Five-step magnification changer
Five-step magnification changer, with steps for 6x, 10x, 1x, 25x, and 40x magnification, results in greater flexibility for the surgeon in a variety of applications
Extensive use of surgical microscopes in the operating room calls
for extreme adaptability to a vast variety of micro-surgical techniques.
This is why the Leica M651 surgical microscope is designed for
quick, easy adaptation to the surgeon s individual requirements. It
takes little effort to adjust the stand to a wide range of basic positions,
to fine-position the microscope, and to obtain fatigue-free
viewing in any position. And there is a wide choice of accessories
for an assistant or a second observer, for photography, closed circuit
television, and video recording. Various types of laser can
In ear surgery, the operating area is so small that a surgical
microscope is essential to make manipulation possible.
Leica M651 surgical microscopes have built-in coaxial lighting for
bright, uniform illumination of the entire operating area even when
the operating canal is extremely narrow. The straight binocular
tube ensures a comfortable viewing position on the inclined instrument.
The long second-observer tube can be positioned for
In many clinics, a surgical microscope is
used by different surgeons for a variety of
micro-surgical tasks. This is why the Leica
M651 surgical microscope is designed to
be adapted quickly and simply to changing
The most important variable components
Microscope carrier and tilt able joint for
positioning according to the job in hand
Binocular tubes for fatigue-free posture
Range of objectives for various working
Perfect adaptation of basic position
Perforated-disk couplings permit a wide range of swing-arm configurations.
In the horizontal position, the stand can be used to the full extent
of its cantilever range. An additional joint allows you to move the
microscope at right angles to the microscope carrier.
In the mid-position the microscope is extremely mobile.
Interchangeable objectives give a choice of ten carefully matched
focal length, magnifications, and field diameters.
Tiltable joint and microscope carrier provide full 360 of movement
and ensure accurate positioning in both the vertical and horizontal
planes. The drive permits precise fine positioning.
A large choice of binocular tubes ensures a comfortable posture
in any of the wide variety of instrument positions. The eye-base is
adjustable from 52 mm to 76 mm. Inclined and straight tubes are
available with or without a double-iris diaphragm and with or without
a drive head for eye base adjustment.
Ideal for different surgical tasks and for neurosurgery
Because the surgeon frequently alters the microscope s position,
a 0 180 variable-angle binocular tube is preferred.
to different surgical techniques
The Leica M651 surgical microscope has a five-step magnification
changer, with steps for 6 , 10 , 16 , 25 , and 40 magnification.
The surgical microscope s ergonomic design and the logical
layout of its easy-grip controls ensure fast routine reactions. The
magnification changer and focusing drive are placed low down
to make the distance to the operating area as short as possible.
The easy-to-reach focusing controls remain securely in the same
A built-in quartz-halogen illuminator and a sophisticated system of
collector lenses produce a very bright, uniformly illuminated field
of view. The brightness is continuously adjustable. The filter slide
can accommodate two filter mounts, for a UV barrier filter, and
daylight, green, or grey glass filters, as required.
Microscope for two-surgeon team
The Leica M651 with 18O dual stereo attachment provides ideal
conditions for back surgery, plastic surgery, gynecology, and
The focusing drive has a 50 mm range, with a mid-range indicator
that simplifies setting-up the surgical microscope before the operation.
You can adjust the braking resistance to the exact amount
you need regardless of any of the special accessories fitted.
The Leica M651 surgical microscope simplifies
the surgeon s difficult task. Its ergonomic
design, ease of use, and excellent
mobility fit smoothly into operating-room
You can use the high-quality Leica M651
surgical microscope for examining patients
in your surgery, but it is also the
perfect instrument for training and for the
. OBSERVER PACKAGE OPTION....SEE ABOVE
FOR ONE YEAR WARRANTY ADD $1350.00
