Dynatel 573DL complete ant, a frame, manual ** **
HAS BEEN CHECKED WORKS AS IT SHOULD

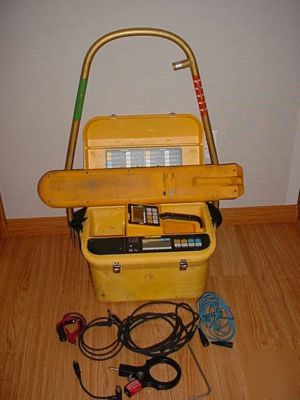

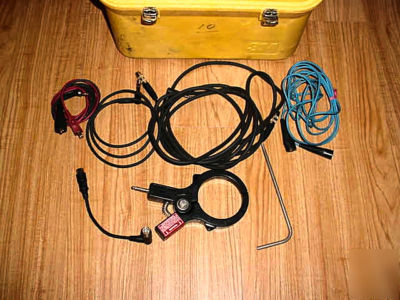

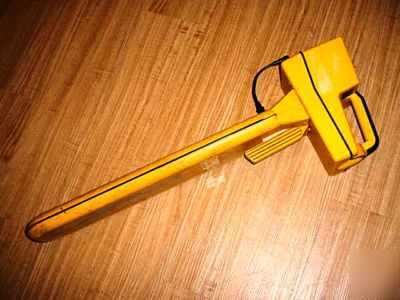

INCLUDES ALL THAT IS SHOWN MANUAL (CD), CABLES, IND. CLAMP, ANTENNA AND "A" FRAME
Multiple: Two trace frequencies or one trace frequency with fault locate signal. Signal Application Method:
External: Direct connect cable, or Dyna-Coupler
Internal: Internal induction coil Signal Level Control: Automatic, selectable between normal or high Trace Frequency: One of four preprogrammed user-selectable frequencies. Tone Frequency: Preprogrammed to 577.5 Hz Fault Locate Frequency: Preprogrammed to 15.625/31.25 Hz dual frequency Volts Function: 0 to 250 V average AC & DC Ohms Function: 0 to 10 Mega Ohms
Coupler/Probe Sensitivity: 6 - 25 kHz - 0.3 V, 25 - 200 kHz - 0.5 V Depth Range: 0 to 100 inches (254 cm)
