Cooper b-line 664-12CHC continuous hinge enclosure
Enclosure and cover are fabricated from (16) gauge steel All continuous welded seams are finished smooth Cover is secured to the body with a continuous hinge on one side and easy-to-operate screw clamps mounted to theopposite side Cover has a fixed, oil-resistant gasket Ground stud provided on cover #10-32 weldnuts are provided for mounting optional panel on 6H x 4W and larger enclosures External mounting feet are provided for secure wall mounting
Finish Wash and phosphate undercoat ANSI 61 gray polyester powder finish Hardware and clamps are zinc plated with a yellow chromate finish
Accessories PanelsApplication Houses electrical controls and instruments Protects against circulating dust, falling dirt anddripping noncorrosive liquids
Standards UL 508 listed, Type 13 and Type 12 CSA C22.2 No.94 certified, Type 13 and Type 12 Conforms to NEMA standard for Type 13and Type 12 Conforms to JIC standard EGP-1-1967 IEC 60529, IP65

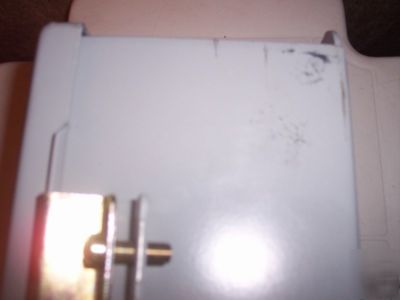

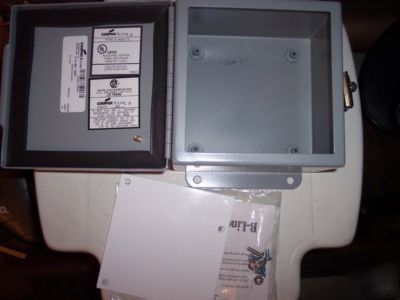

Enclosure dimensions are 6" x 6" x 4". It has a little shelf wear but is brand new never used. Box comes with part #AW66P white panel, dimensions are 4.87" x 4.87" and part #10315, a hardware kit PNL GRND #10 brand new in package.
